Removal [03/2019 - ]: Procedure

  1. REMOVE ROOF CONSOLE BOX SUB-ASSEMBLY

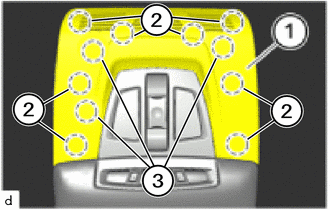

    1. Using a molding remover A, detach the claws (2) and guides (3) to remove the roof console box cover (1).
      GTY903295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Carefully detach and remove the roof console box cover, not to damage the claws.

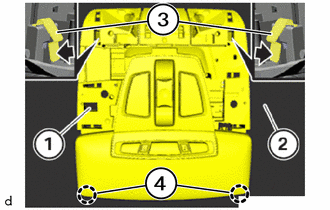

    2. Detach the retaining lugs (3) on the left and right using a screwdriver in the direction of the arrows.
      GTY870054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
    3. Detach the guides (4) to remove the roof console box sub-assembly (1) from the roof headlining assembly (2).

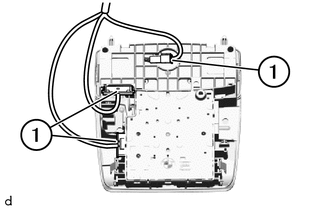

    4. Unlock associated plug (1) connections and disconnect.
      GTY894845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE MAP LIGHT ASSEMBLY

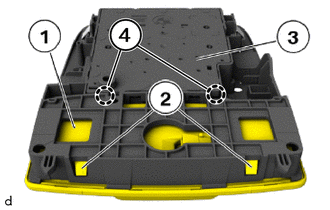

    1. Detach the clamps (2) and guides (4) to remove the map light assembly (1) from the roof console box sub-assembly (3).
      GTY903299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
