Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)

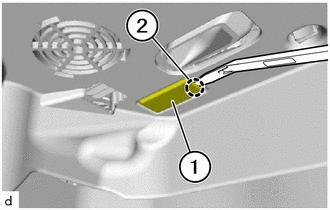

    1. Using a molding remover A, detach the claw (2) to remove the No. 1 interior illumination light assembly (1) from the No. 1 instrument panel under cover sub-assembly.
      GTY903243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

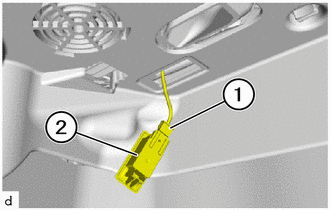

    2. Unlock plug connection (1) and disconnect.
      GTY903241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove No. 1 interior illumination light assembly (2).
  2. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Front Passenger Side)

    Refer to PROCEDURE - Step 12 [07/2022 - ]

  3. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)

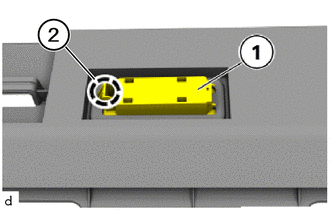

    1. Detach the claw (2) to remove the No. 1 interior illumination light assembly (1) from the No. 2 instrument panel under cover sub-assembly.
      GTY903234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
