Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [07/2022 - ]

  2. REMOVE EMERGENCY LOUDSPEAKER

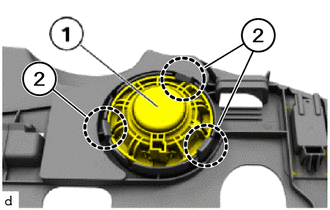

    1. Detach the claws (2) to remove the emergency loudspeaker (1).
      GTY940451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
