Removal [03/2019 - ]: Procedure

  1. REMOVE FRONT CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2022 - ]

  2. REMOVE CONSOLE SIDE PANEL

    Refer to PROCEDURE - Step 4 [07/2022 - ]

  3. REMOVE CONSOLE PANEL AND CONSOLE PANEL RETAINER

    Refer to PROCEDURE - Step 5 [07/2022 - ]

  4. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL

    Refer to PROCEDURE - Step 6 [07/2022 - ]

  5. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 7 [07/2022 - ]

  6. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

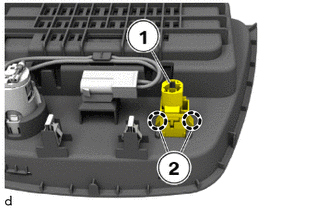

    1. Detach the claws (2) to remove the No. 1 stereo jack adapter assembly (1).
      GTY903284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
