Components [03/2019 - ]

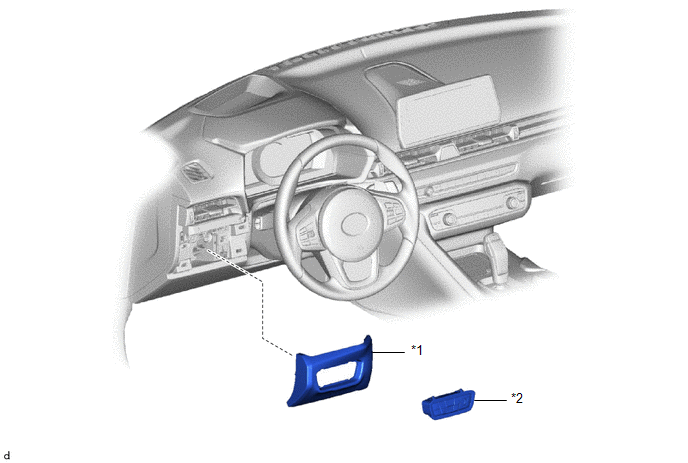

Fig 1: Light Control Rheostat Replacement Components
GTY908557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *2 LIGHT CONTROL RHEOSTAT (NO. 1 LIGHT CONTROL SWITCH ASSEMBLY)
