Removal [07/2020 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL SEAL

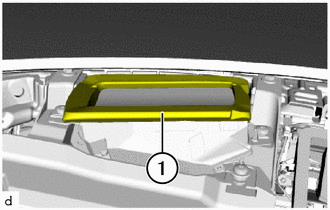

    1. Remove the No. 1 instrument cluster finish panel seal (1).
      GTY901199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE METER MIRROR SUB-ASSEMBLY
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • Antistatic work clothing and antistatic shoes (with ESD symbol).
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

    1. Remove the T30 bolts (1).
      GTY901194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Feed out meter mirror sub-assembly (2) from instrument panel reinforcement sub-assembly.

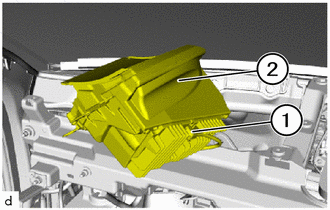

      GTY901196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Unlock plug connection (1) and disconnect.
    4. Remove the meter mirror sub-assembly (2).
