Components [03/2019 - ]

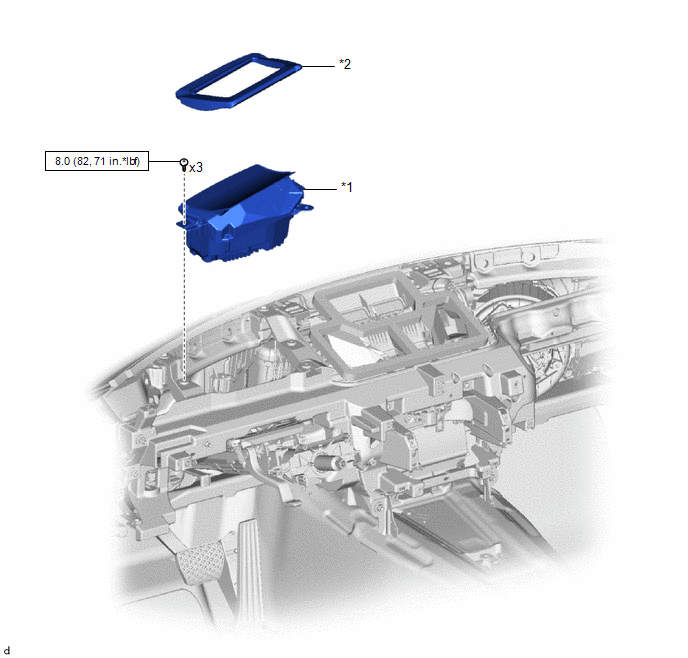

Fig 1: Headup Display Replacement Components With Torque Specifications
GTY860315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 METER MIRROR SUB-ASSEMBLY *2 NO. 1 INSTRUMENT CLUSTER FINISH PANEL SEAL
N.m (kgf/cm, ft.lbf): Specified torque - -
