Reassembly [03/2019 - ]: Procedure

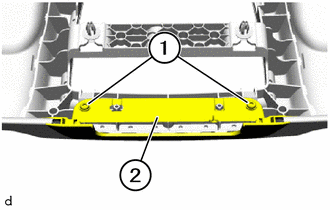

  1. INSTALL ROOF HEADLINING SUPPORT
    1. Install the roof headlining support (2).
      GTY893458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the T20 screws (1).

      Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER CUSHION
    1. Install the inner rear view mirror stay holder cover cushion (1).
      GTY893459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
