Components [03/2019 - ]

Fig 1: Roof Headlining Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PACKAGE TRAY TRIM PANEL ASSEMBLY

PACKAGE TRAY TRIM STOPPER

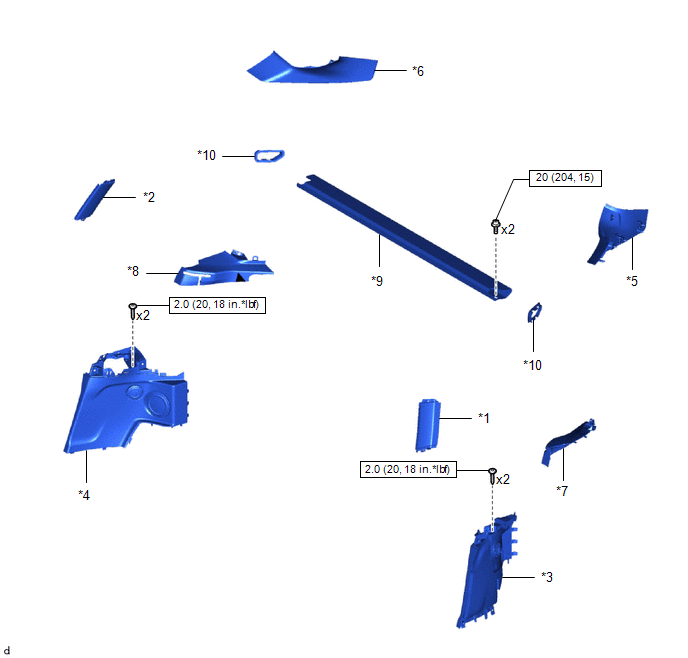

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER PILLAR GARNISH ASSEMBLY LH	*2	CENTER PILLAR GARNISH ASSEMBLY RH
*3	QUARTER TRIM UPPER PANEL LH	*4	QUARTER TRIM UPPER PANEL RH
*5	ROOF SIDE INNER GARNISH ASSEMBLY LH	*6	ROOF SIDE INNER GARNISH ASSEMBLY RH
*7	SEAT BELT HOLE COVER SUB-ASSEMBLY LH	*8	SEAT BELT HOLE COVER SUB-ASSEMBLY RH
*9	TRANSVERSE PIPE	*10	TRANSVERSE PIPE TRIM
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

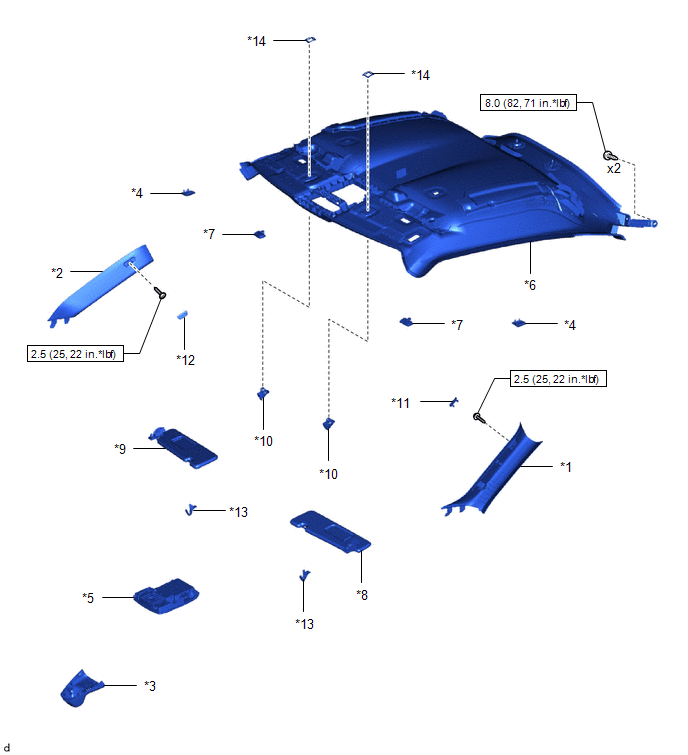

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	FRONT PILLAR GARNISH LH	*2	FRONT PILLAR GARNISH RH
*3	INNER REAR VIEW MIRROR STAY HOLDER COVER	*4	MICROPHONE CASE
*5	ROOF CONSOLE BOX SUB-ASSEMBLY	*6	ROOF HEADLINING ASSEMBLY
*7	VANITY LIGHT ASSEMBLY	*8	VISOR ASSEMBLY LH
*9	VISOR ASSEMBLY RH	*10	VISOR HOLDER
*11	FRONT PILLAR GARNISH COVER LH	*12	FRONT PILLAR GARNISH COVER RH
*13	VISOR BRACKET COVER	*14	VISOR HOLDER RETAINER
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

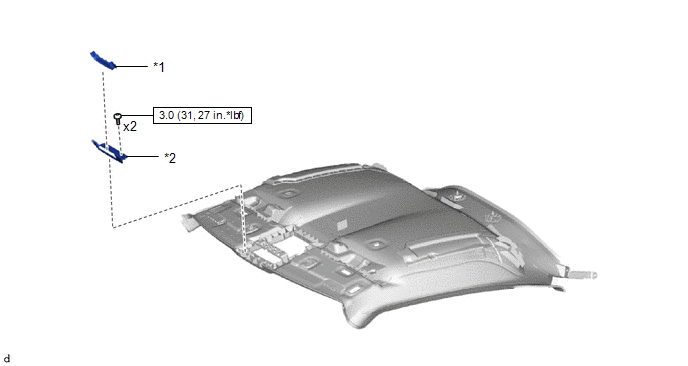

Fig 4: Roof Headlining Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	INNER REAR VIEW MIRROR STAY HOLDER COVER CUSHION	*2	ROOF HEADLINING SUPPORT
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
