Removal [03/2019 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    See step  10 [07/2020 - ]

  2. REMOVE NO. 1 LIGHT CONTROL SWITCH ASSEMBLY

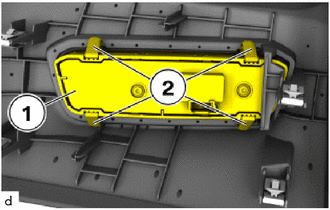

    1. Detach the clips (2) to remove the No. 1 light control switch assembly (1).
      GTY893431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
