Installation [11/2018 - 08/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL AIR FUEL RATIO SENSOR

HINT:

Perform "Inspection After Repairs" after replacing the air fuel ratio sensor.

for Sensor 2:

Using SST, install the air fuel ratio sensor to the front exhaust pipe assembly.

Specified tightening torque

Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

NOTE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2018 - ]
When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 37.7 N.m (384 kgf/cm, 28 ft.lbf)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

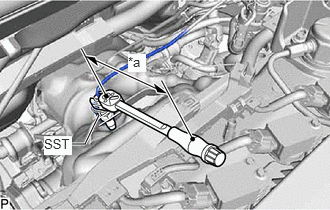

*a	Torque Wrench Fulcrum Length

Connect the air fuel ratio sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

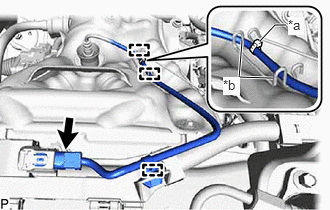

*a	Tie Band
*b	Wire Harness Clamp

Attach the 2 wire harness clamps so that the tie band is positioned as shown in the illustration.

for Sensor 1:

Using SST, install the air fuel ratio sensor to the exhaust manifold.

Specified tightening torque

Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

NOTE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [11/2018 - ]
When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 37.7 N.m (384 kgf/cm, 28 ft.lbf)

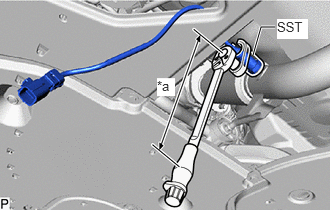

*a	Torque Wrench Fulcrum Length

Connect the air fuel ratio sensor connector.

*a	Tie Band
*b	Wire Harness Clamp

Attach the 3 wire harness clamps so that the tie band is positioned as shown in the illustration.

INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 76
INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 8 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 8 [02/2019 - 08/2020]
