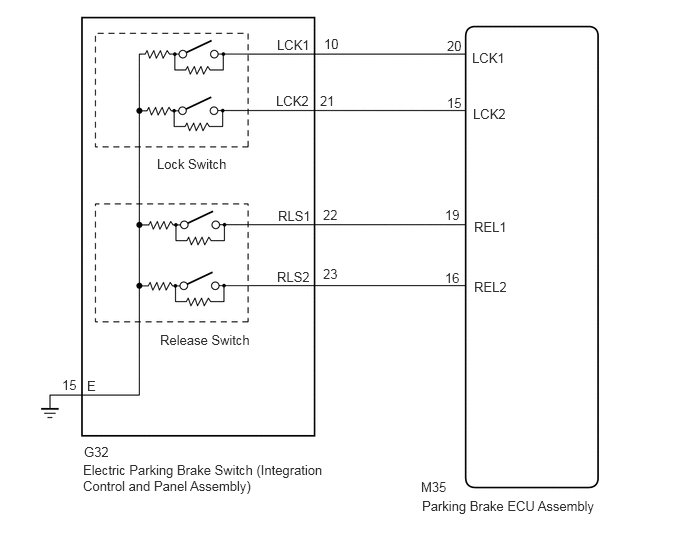

DTC C13A3: Open or Short Circuit in Lock Switch Circuit; DTC C13AB: Lock Switch Circuit Comparison [02/2019 - 12/2021]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY899510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
