DTC C0610-13: Right Electric Parking Brake Actuator Control Circuit Open [12/2021 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY
    1. Turn the ignition switch off.
    2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

      OK

      The connector is securely connected.

    3. Disconnect the MM4 and M49 No. 1 parking brake wire assembly connectors.
    4. Check both the connector case and the terminals for deformation and corrosion.

      OK

      No deformation or corrosion.

    5. Measure the resistance according to the value(s) in the table below.

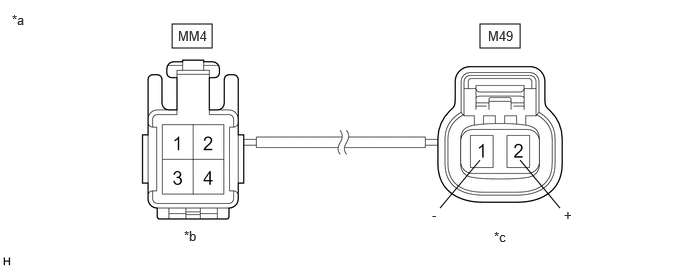

      GTY1118166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of No. 1 Parking Brake Wire Assembly *b (to wire harness connector)
      *c (to Parking Brake Actuator Assembly RH) - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      MM4-1 - M49-2 (+) Always Below 1 Ω
      MM4-1 or M49-2 (+) - Other terminals Always 10 kΩ or higher
      MM4-2 - M49-1 (-) Always Below 1 Ω
      MM4-2 or M49-1 (-) - Other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY RH)
    1. Turn the ignition switch off.
    2. Make sure the No. 1 parking brake wire assembly is securely installed.
    3. Disconnect the A105 No. 2 skid control ECU (brake actuator assembly) connector.
    4. Disconnect the M49 parking brake actuator assembly RH connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A105-13 (MRR+) - M49-2 (+) Always Below 1 Ω
      A105-12 (MRR-) - M49-1 (-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. INSPECT PARKING BRAKE ACTUATOR ASSEMBLY RH

    Refer to INSPECTION [11/2018 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY). Refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    NG

    REPLACE PARKING BRAKE ACTUATOR ASSEMBLY RH. Refer to  REMOVAL [11/2018 - ]
