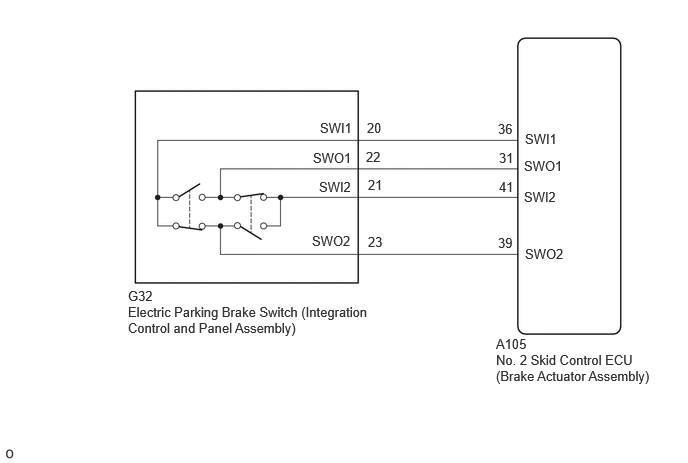

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [12/2021 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1118862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
