DTC C13A6: Open or Short Circuit in Motor [10/2019 - 12/2021]: Procedure
WARNING: This page is about a different variant/trim than selected.
- READ VALUE USING TECHSTREAM (RH ACTUATOR CURRENT STATUS / LH ACTUATOR CURRENT STATUS)
- Turn the ignition switch off.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Chassis / Electric Parking Brake / Data List.
- Read the Data List according to the display on the Techstream.
Chassis > Electric Parking Brake > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note RH Actuator Current Status RH Actuator Current Status Valid or Inval Valid - LH Actuator Current Status LH Actuator Current Status Valid or Inval Valid - Chassis > Electric Parking Brake > Data List
Tester Display RH Actuator Current Status LH Actuator Current Status Result
Proceed to NEXT
Result:
NEXT
See step 2
- INSPECT PARKING BRAKE WIRE ASSEMBLY

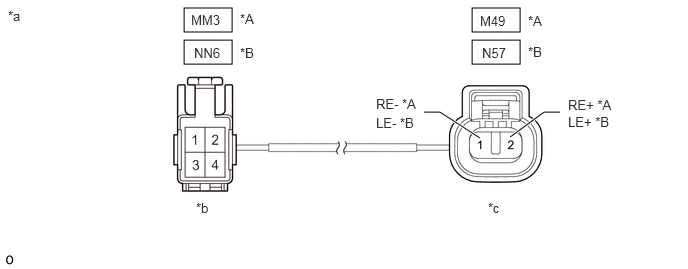

*A RH *B LH *a Front view of Parking Brake Wire Assembly *b (to Wire Harness Connector) *c (to Parking Brake Actuator Assembly) - - - Remove the parking brake wire assembly.
- Check the parking brake wire assembly for damage.
OK
No damage.
HINT:
If damaged, there may be a short in the wire harness or a short to ground.
- Inspect the parking brake wire assembly.
Standard Resistance
RHTester Connection Condition Specified Condition MM3-2 - M49-1 (RE-) Always Below 1 Ω MM3-2 - M49-2 (RE+) Always 10 kΩ or higher MM3-2 or M49-1 (RE-) - Body ground Always 10 kΩ or higher MM3-1 - M49-2 (RE+) Always Below 1 Ω MM3-1 - M49-1 (RE-) Always 10 kΩ or higher MM3-1 or M49-2 (RE+) - Body ground Always 10 kΩ or higher LHTester Connection Condition Specified Condition NN6-2 - N57-1 (LE-) Always Below 1 Ω NN6-2 - N57-2 (LE+) Always 10 kΩ or higher NN6-2 or N57-1 (LE-) - Body ground Always 10 kΩ or higher NN6-1 - N57-2 (LE+) Always Below 1 Ω NN6-1 - N57-1 (LE-) Always 10 kΩ or higher NN6-1 or N57-2 (LE+) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE PARKING BRAKE WIRE ASSEMBLY
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (PARKING BRAKE ECU ASSEMBLY - PARKING BRAKE ACTUATOR ASSEMBLY)
- Turn the ignition switch off.
- Make sure the parking brake wire assembly is securely installed.
- Disconnect the M36 parking brake ECU assembly connector.
- Disconnect the M49 or N57 parking brake actuator assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RHTester Connection Condition Specified Condition M36-1 (MRR+) - M49-2 (RE+) Always Below 1 Ω M36-3 (MRR-) - M49-1 (RE-) Always Below 1 Ω M36-1 (MRR+) or M49-2 (RE+) - Body ground Always 10 kΩ or higher M36-3 (MRR-) or M49-1 (RE-) - Body ground Always 10 kΩ or higher LHTester Connection Condition Specified Condition M36-4 (MRL+) - N57-2 (LE+) Always Below 1 Ω M36-6 (MRL-) - N57-1 (LE-) Always Below 1 Ω M36-4 (MRL+) or N57-2 (LE+) - Body ground Always 10 kΩ or higher M36-6 (MRL-) or N57-1 (LE-) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- INSPECT PARKING BRAKE ACTUATOR ASSEMBLY
- Remove the parking brake actuator assembly.
Refer to REMOVAL [11/2018 - ]
- Inspect the parking brake actuator assembly.
Refer to INSPECTION [11/2018 - ]
Result
Proceed to OK NG
Result:
OK
REPLACE PARKING BRAKE ECU ASSEMBLY. Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021]
Result:
NG
REPLACE PARKING BRAKE ACTUATOR ASSEMBLY. Refer to REMOVAL [11/2018 - ]
- Remove the parking brake actuator assembly.
