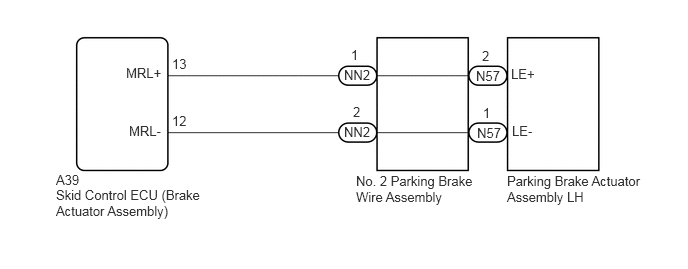

DTC C060B-00: Left Electric Parking Brake Actuator Control; DTC C060B-11: Left Electric Parking Brake Actuator Control Circuit Short to Ground [11/2018 - 10/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY874911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
