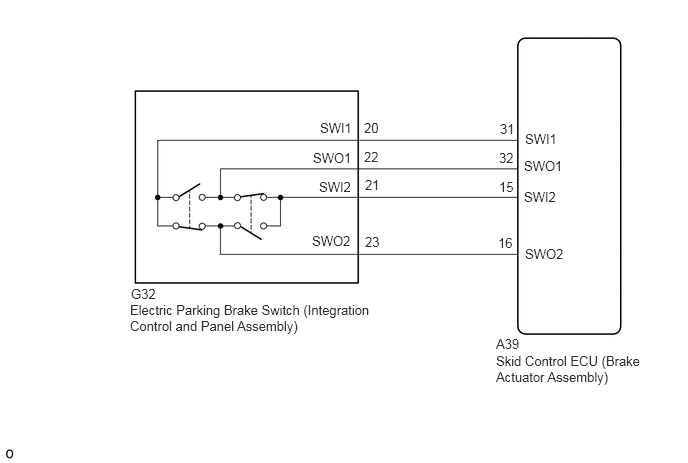

DTC C0609-62: Electric Parking Brake Switch Signal Compare Failure [11/2018 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY875168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
