Removal [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT NO. 1 VACUUM HOSE CONNECTOR
    1. Pinch the retainer of the No. 1 vacuum hose connector, and then pull the No. 1 vacuum hose connector off of the vacuum pump assembly.
      NOTE:

      Be sure to disconnect the No. 1 vacuum hose connector by hand.

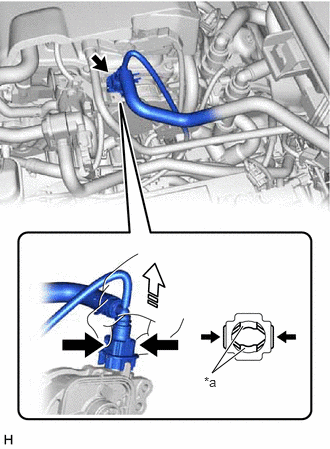

      GTY901245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Pinch
      Pull off
  2. SEPARATE ENGINE WIRE
    1. Disengage the clamp to separate the engine wire.

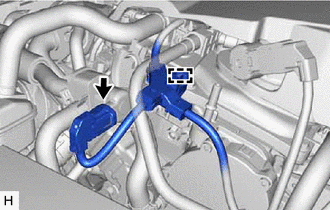

      GTY881096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to separate the engine wire.

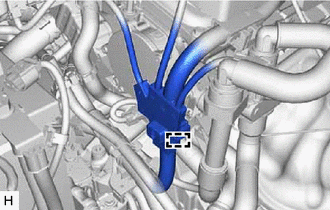

    3. GTY881088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the clamp to separate the engine wire.

  3. REMOVE VACUUM PUMP ASSEMBLY
    1. Using an 8 mm socket wrench, remove the 3 bolts and vacuum pump assembly from the engine assembly.

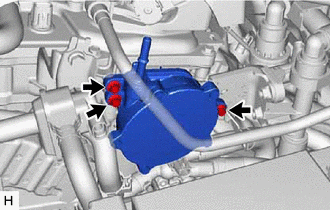

      GTY935611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 vacuum pump O-ring from the vacuum pump assembly.
      GTY766380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
