Installation [11/2018 - ]: Procedure

1. When reusing the vacuum pump assembly:
   1. Install a new No. 1 vacuum pump O-ring to the vacuum pump assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the vacuum pump assembly so that the coupling teeth of the vacuum pump assembly and groove of the camshaft are engaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Coupling Teeth
   *b	Groove

   NOTE:

   • Ensure that the vacuum pump assembly is installed securely.
   • Be careful not to pinch the No. 1 vacuum pump O-ring.

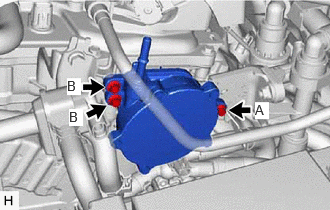

3. Using an 8 mm socket wrench, install the vacuum pump assembly with the 3 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Perform the procedure by fully tightening the bolt (A), and then fully tightening the bolts (B).
   • After installation, check that there are no gaps between the matching surfaces and that the vacuum pump assembly is not installed at an angle.

1. Engage the clamp to connect the engine wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Engage the clamp to connect the engine wire.

3. Connect the connector and engine wire.

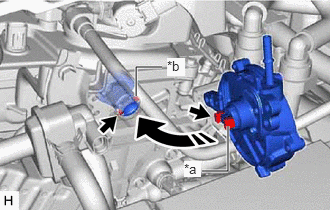

1. Align the No. 1 vacuum hose connector with the vacuum pump assembly, and push them together until the No. 1 vacuum hose connector makes a "click" sound.
   NOTE:

   • Check that there is no foreign matter on the connecting parts.
   • After connecting the No. 1 vacuum hose connector, check that the vacuum pump assembly and No. 1 vacuum hose connector are securely connected by pulling on them.

Refer to ON-VEHICLE INSPECTION [11/2018 - ]
