SRS Warning Light does not Come ON [11/2018 - 08/2020]: Wiring Diagram

WARNING: This page is about a different car, the 2020 Toyota RAV4 and 2019 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

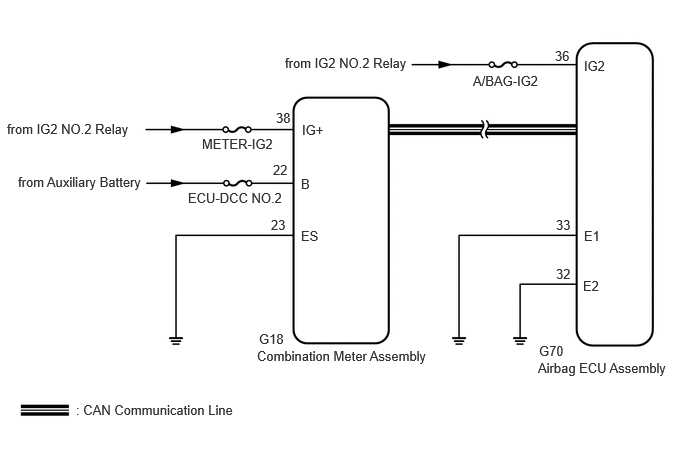

GTY1110976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
