Removal [06/2020 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 5 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

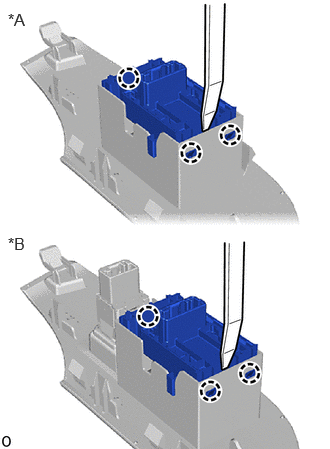

    1. Using a moulding remover A, detach the claw and remove the rear power window regulator switch assembly from the rear door armrest base panel upper LH.
      GTY1008017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Seat Heater Switch
      *B w/ Seat Heater Switch
