Disassembly [06/2020 - ]: Procedure

REMOVE NO. 1 BODY OUTSIDE MOULDING PAD

HINT:

When removing the No. 1 body outside moulding pad, if it is difficult to remove, heat the adhesive of the quarter outside moulding LH and No. 1 body outside moulding pad using a heat light.

Standard

Item	Temperature
Quarter Outside Moulding LH	20 to 30°C (68 to 86°F)
No. 1 Body Outside Moulding Pad	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

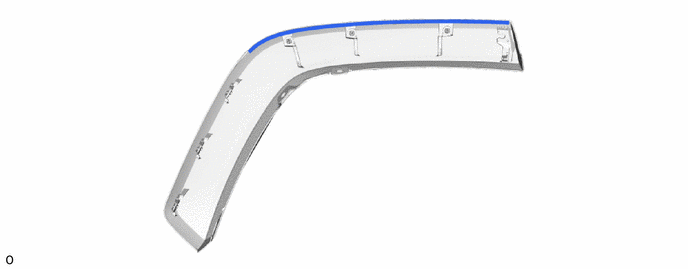

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat quarter outside moulding LH and No. 1 body outside moulding pad excessively.

Remove the No. 1 body outside moulding pad.
