Removal [06/2020 - ]: Procedure

  1. REMOVE FRONT DOOR NO. 2 WEATHERSTRIP LH

    Refer to PROCEDURE - Step 49 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 49 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 49 [10/2022 - ]

  2. REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH

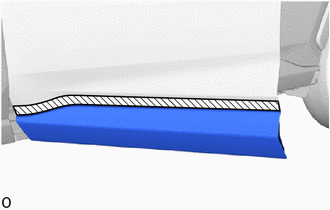

    1. Put protective tape around the front door lower outside moulding sub-assembly LH.
      GTY888808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective tape

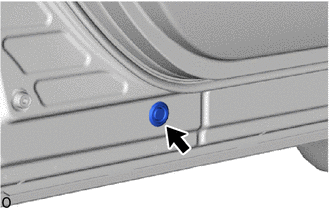

    2. Remove the hole plug.
      GTY888611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

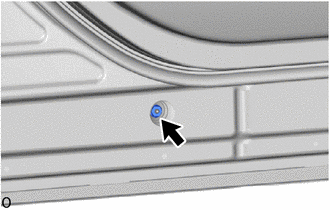

    3. Remove the nut.
      GTY888612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

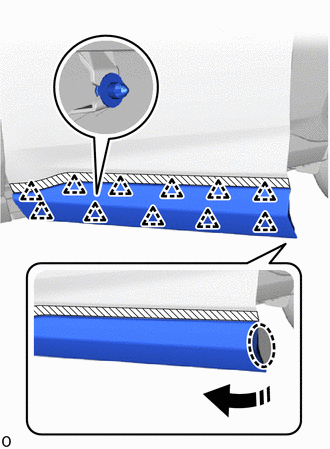

    4. Detach the clip and remove the front door lower outside moulding sub-assembly LH as shown in the illustration.
      GTY1006274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand Here
      Remove in this Direction
