Disassembly [06/2020 - ]: Procedure

REMOVE FRONT DOOR UPPER OUTSIDE MOULDING PAD

HINT:

When removing the front door upper outside moulding pad, if it is difficult to remove, heat the adhesive of the front door lower outside moulding LH and front door upper outside moulding pad using a heat light.

Standard

Item	Temperature
Front Door Lower Outside Moulding LH	20 to 30°C (68 to 86°F)
Front Door Upper Outside Moulding Pad	20 to 30°C (68 to 86°F)

WARNING:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

NOTE:

Do not heat the front door lower outside moulding LH and front door upper outside moulding pad excessively.

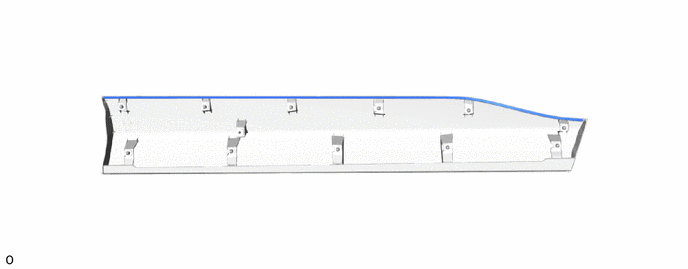

Remove the front door upper outside moulding pad.

REMOVE NO. 1 OUTSIDE MOULDING RETAINER

Remove the No. 1 outside moulding retainer.
