Adjustment [06/2020 - 12/2021]: Procedure

PRECAUTION

WARNING:

Be sure to read Precaution thoroughly before servicing.

Refer to PRECAUTION [06/2020 - 10/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Refer to REMOVAL [06/2020 - 12/2021]

WARNING:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT REAR DOOR PANEL SUB-ASSEMBLY LH

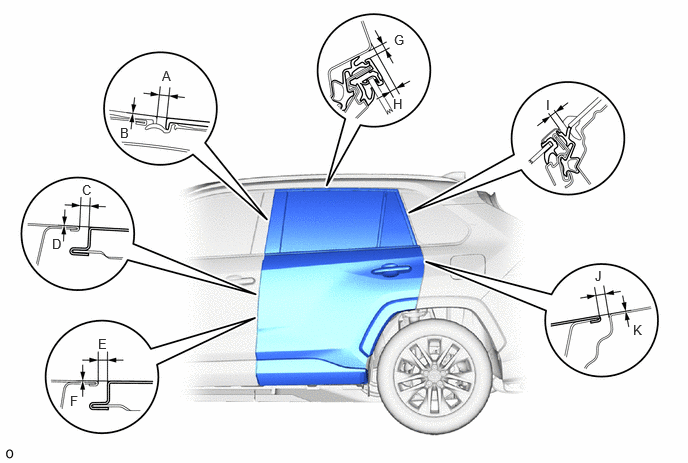

Check that the clearance measurements of areas A to K are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A (Reference)	5.1 mm (0.201 in.)	B (Reference)	0 mm (0 in.)
C	2.9 to 5.3 mm (0.114 to 0.209 in.)	D	-1.5 to 0.9 mm (-0.0591 to 0.0354 in.)
E	2.9 to 5.3 mm (0.114 to 0.209 in.)	F	-1.5 to 0.9 mm (-0.0591 to 0.0354 in.)
G	2.65 to 6.05 mm (0.104 to 0.238 in.)	H	3.15 to 7.15 mm (0.124 to 0.281 in.)
I	3.3 to 7.3 mm (0.130 to 0.287 in.)	J	2.2 to 5.2 mm (0.0866 to 0.2047 in.)
K	-1.8 to 1.2 mm (-0.0709 to 0.0472 in.)	-	-

ADJUST REAR DOOR PANEL SUB-ASSEMBLY LH

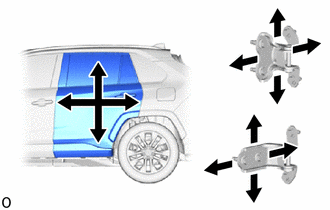

Loosen the hinge bolts on the body and adjust the door position.

Tighten the hinge bolts on the body after the adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

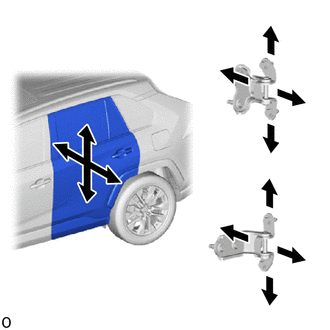

Loosen the hinge bolts on the door and adjust the door position.

Tighten the hinge bolts on the door after the adjustment.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

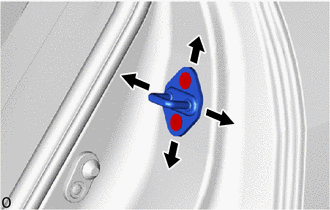

Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a brass bar and a hammer.

Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [06/2020 - 10/2022]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [06/2020 - 10/2022]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021]
INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [06/2020 - ]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [06/2020 - ]
