Removal [06/2020 - 12/2021]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [06/2020 - 12/2021]

  3. REMOVE REAR DOOR INSIDE HANDLE BEZEL LH

    Refer to PROCEDURE - Step 3

  4. REMOVE DOOR ASSIST GRIP COVER LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

    Refer to PROCEDURE - Step 10

  8. REMOVE REAR DOOR FRONT BELT SEAL LH

    Refer to PROCEDURE - Step 11

  9. REMOVE REAR DOOR REAR BELT SEAL LH

    Refer to PROCEDURE - Step 12

  10. REMOVE REAR DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 14

  11. REMOVE REAR DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 15

  12. DISCONNECT REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 18

  13. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  14. REMOVE REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 18

  15. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 21

  16. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 22

  17. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY LH

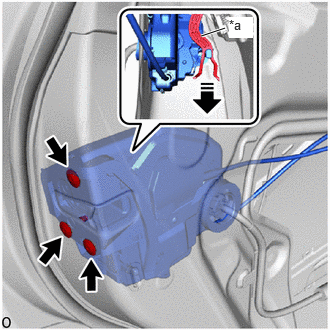

    1. Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws.
      GTY1009723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Release Plate
      Remove in this Direction
    2. Remove the release plate of the rear door outside handle frame sub-assembly LH in the direction indicated by the arrow shown in the illustration to remove the rear door lock with motor assembly LH.
  18. REMOVE DOOR LOCK WIRING HARNESS SEAL
    1. When reusing rear door lock with motor assembly LH:
      GTY1008990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the door lock wiring harness seal from the rear door lock with motor assembly LH.
  19. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the cover.
      GTY1009657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape
    2. Detach the clamp and remove the rear door lock remote control cable assembly as shown in the illustration.
      GTY1009258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, detach the claw and open the cover.
      GTY1009206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      Protective Tape
    2. Detach the clamp and remove the rear door inside locking cable assembly as shown in the illustration.
      GTY1009772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
