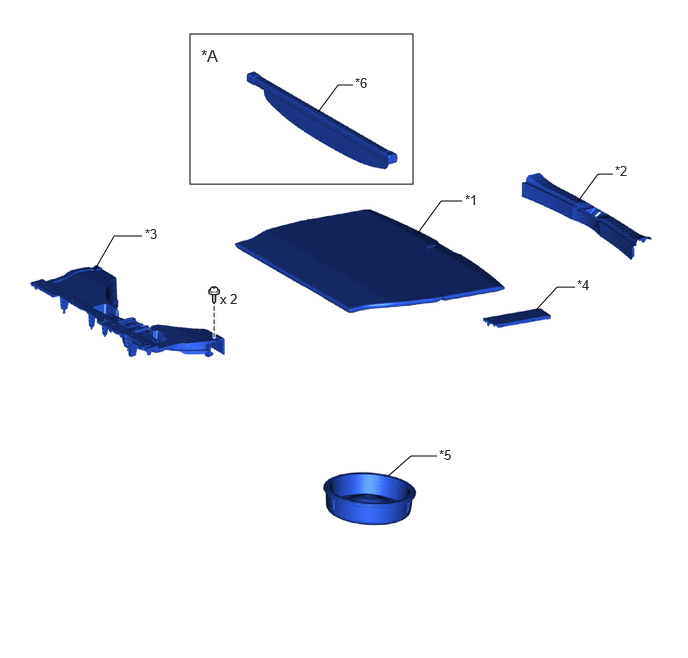

Components [06/2020 - 12/2021]
| *A | w/ Tonneau Cover | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | REAR FLOOR FINISH PLATE |
| *3 | REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE | *4 | REAR NO. 3 FLOOR BOARD |
| *5 | SPARE WHEEL COVER STOPPER | *6 | TONNEAU COVER ASSEMBLY |
Fig 2: Roof Headlining Replacement Components With Torque Specifications [06/2020 - 12/2021] (2 Of 15)

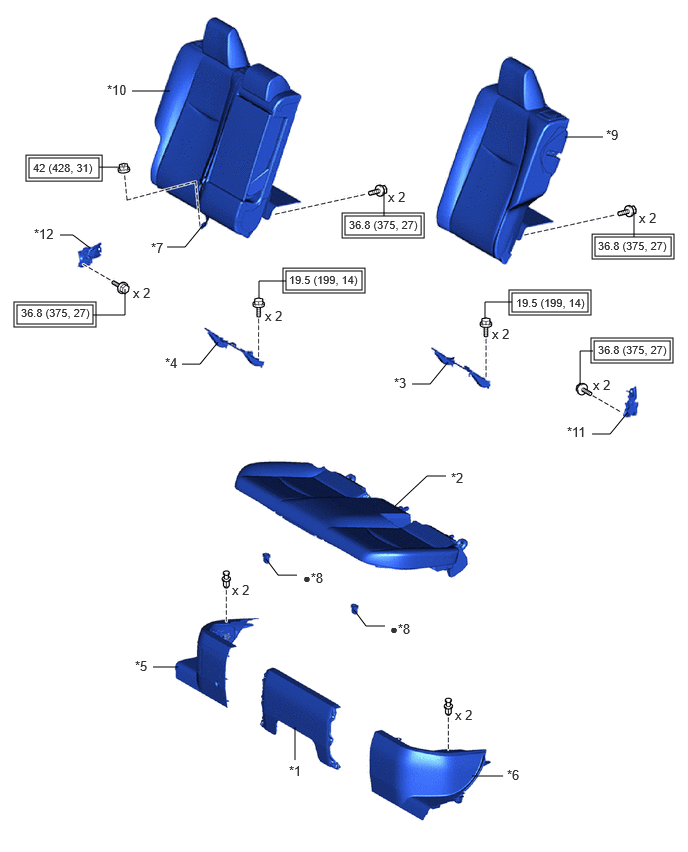

| Callout | Description | Callout | Description |
| *1 | BATTERY SERVICE COVER BOARD | *2 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
| *3 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH | *4 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH |
| *5 | NO. 2 BATTERY SERVICE COVER BOARD | *6 | NO. 3 BATTERY SERVICE COVER BOARD |
| *7 | REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) | *8 | REAR SEAT CUSHION LOCK HOOK |
| *9 | REAR SEATBACK ASSEMBLY LH | *10 | REAR SEATBACK ASSEMBLY RH |
| *11 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | *12 | REAR SEATBACK HINGE SUB-ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

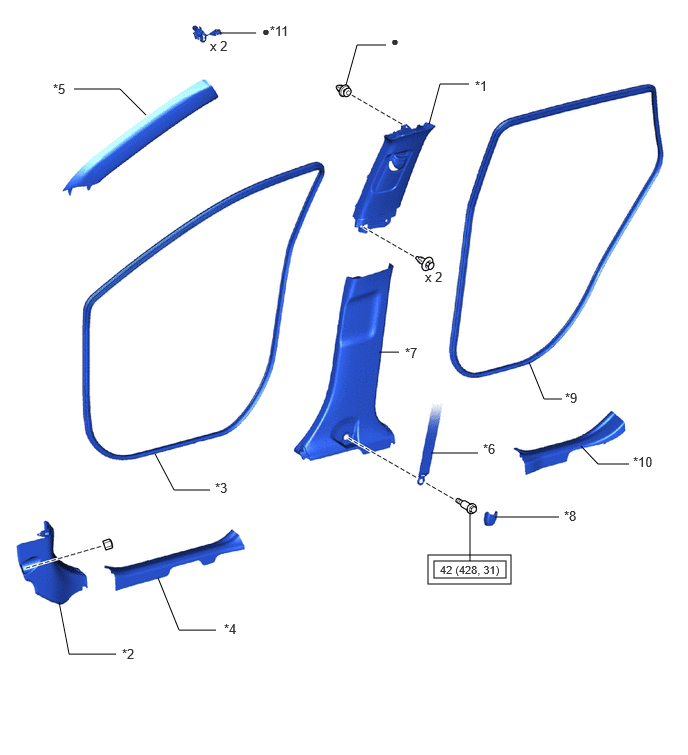

Fig 3: Roof Headlining Replacement Components With Torque Specifications [06/2020 - 12/2021] (3 Of 15)
| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH LH | *2 | COWL SIDE TRIM BOARD LH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | FRONT PILLAR GARNISH LH | *6 | FRONT SEAT OUTER BELT ASSEMBLY LH |
| *7 | LOWER CENTER PILLAR GARNISH LH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *10 | REAR DOOR SCUFF PLATE LH |
| *11 | FRONT PILLAR GARNISH CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

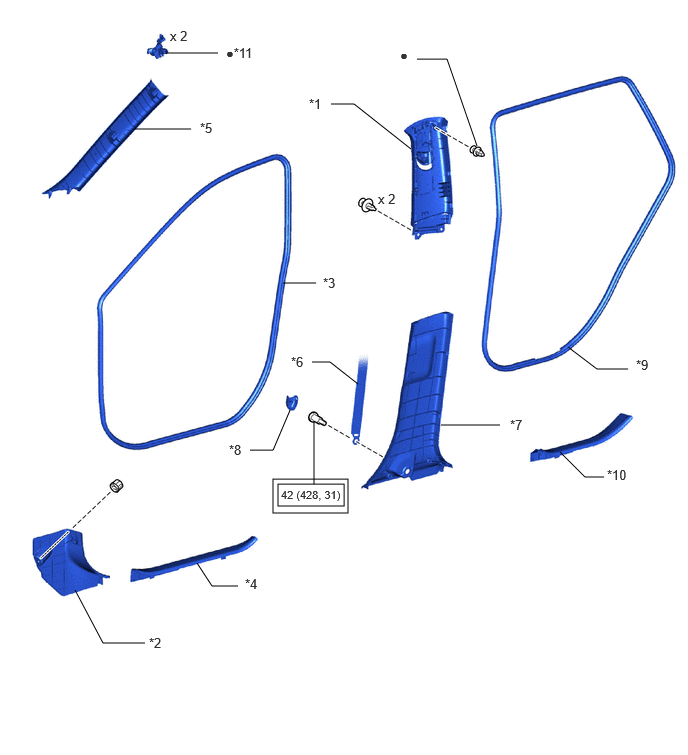

Fig 4: Roof Headlining Replacement Components With Torque Specifications [06/2020 - 12/2021] (4 Of 15)
| Callout | Description | Callout | Description |
| *1 | CENTER PILLAR GARNISH RH | *2 | COWL SIDE TRIM BOARD RH |
| *3 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH | *4 | FRONT DOOR SCUFF PLATE RH |
| *5 | FRONT PILLAR GARNISH RH | *6 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *7 | LOWER CENTER PILLAR GARNISH RH | *8 | OUTER LAP BELT ANCHOR COVER |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| *11 | FRONT PILLAR GARNISH CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

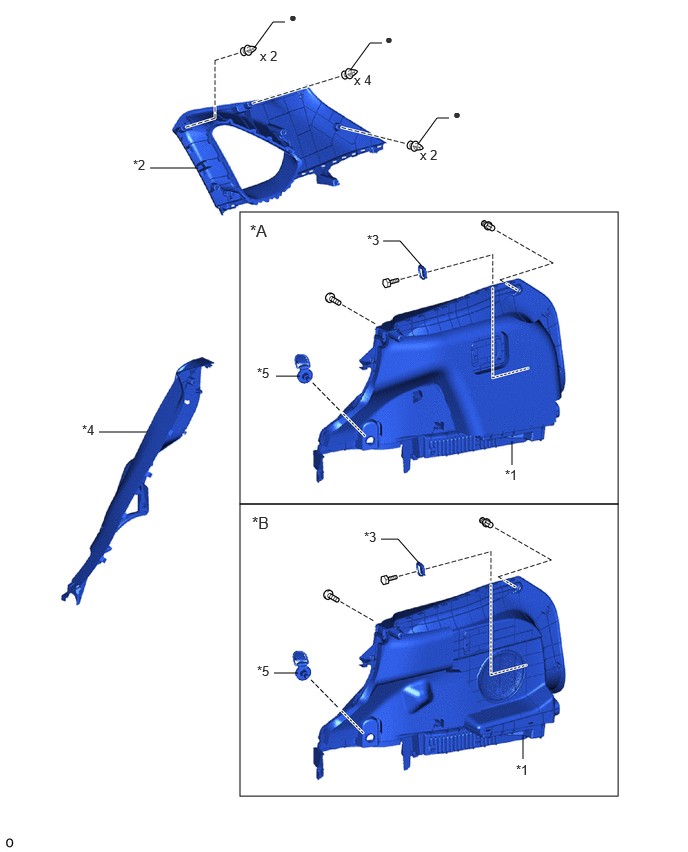

| *A | for 6 Speakers | *B | for 9 Speakers |

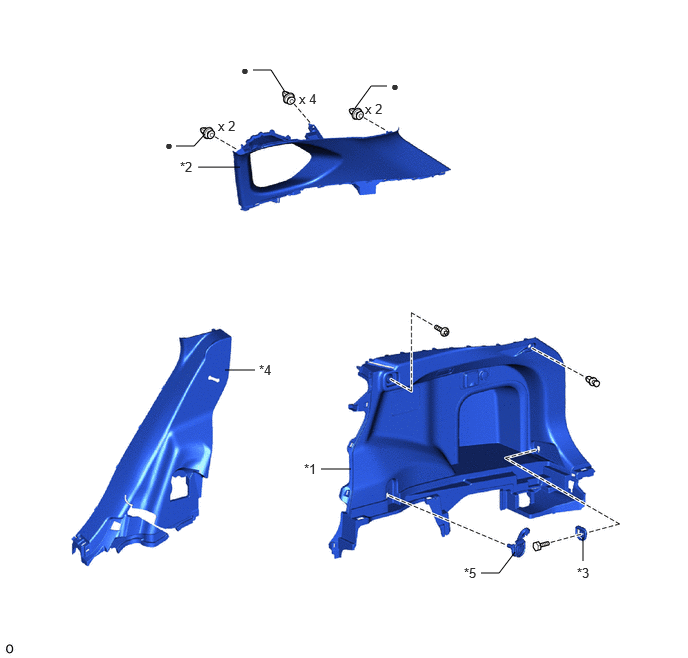

| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY LH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | REAR SEAT SIDE GARNISH LH |
| *5 | TETHER ANCHOR BRACKET SET | - | - |
| • | Non-reusable part | - | - |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | REAR SEAT SIDE GARNISH RH |
| *5 | TETHER ANCHOR BRACKET SET | - | - |
| • | Non-reusable part | - | - |

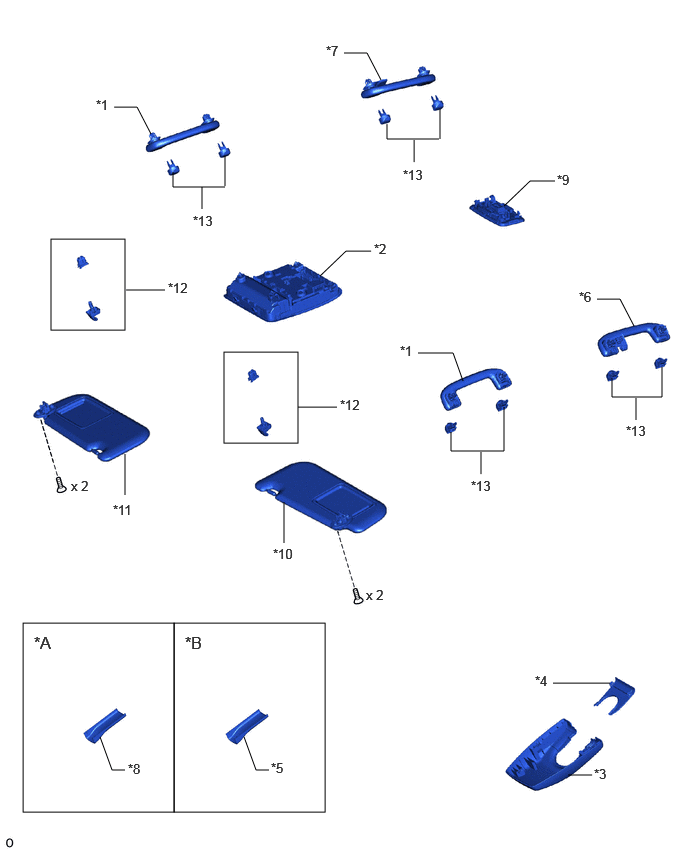

| *A | w/o Rain Sensor | *B | w/ Rain Sensor |
| *1 | ASSIST GRIP ASSEMBLY | *2 | MAP LIGHT ASSEMBLY |
| *3 | NO. 1 FORWARD RECOGNITION COVER | *4 | NO. 2 FORWARD RECOGNITION COVER |
| *5 | RAIN SENSOR COVER | *6 | REAR ASSIST GRIP ASSEMBLY LH |
| *7 | REAR ASSIST GRIP ASSEMBLY RH | *8 | SENSOR COVER |
| *9 | SPOT LIGHT ASSEMBLY | *10 | VISOR ASSEMBLY LH |
| *11 | VISOR ASSEMBLY RH | *12 | VISOR HOLDER |
| *13 | ASSIST GRIP COVER | - | - |

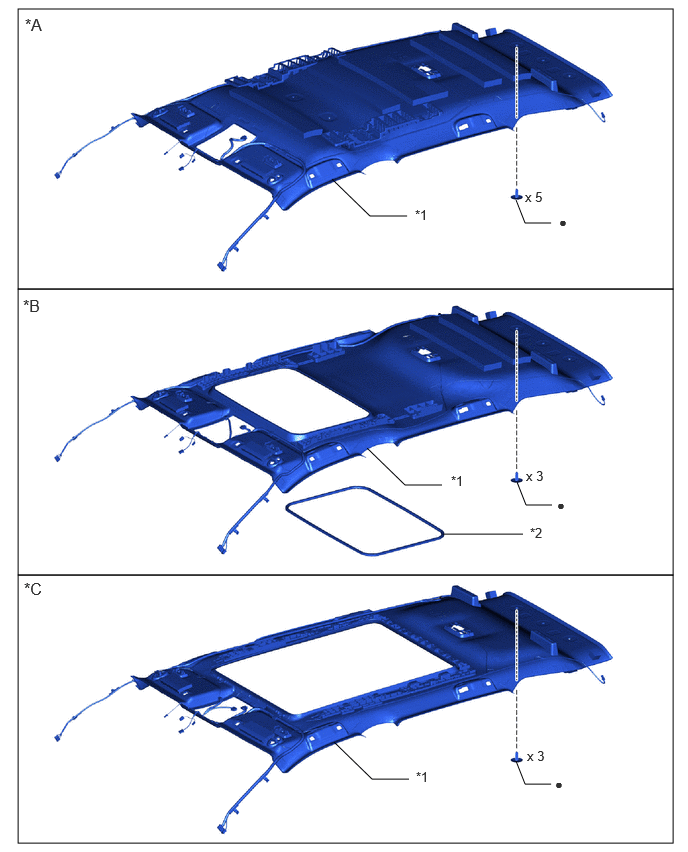

| *A | for Normal Roof | *B | for Moon Roof |
| *C | for Panoramic Moon Roof | - | - |
| *1 | ROOF HEADLINING ASSEMBLY | *2 | SUN ROOF OPENING TRIM MOULDING |
| • | Non-reusable part | - | - |

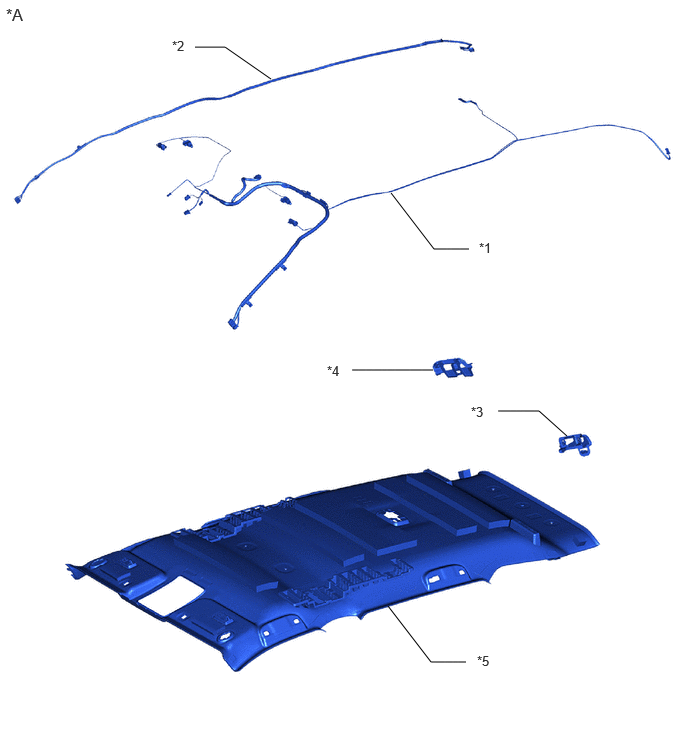

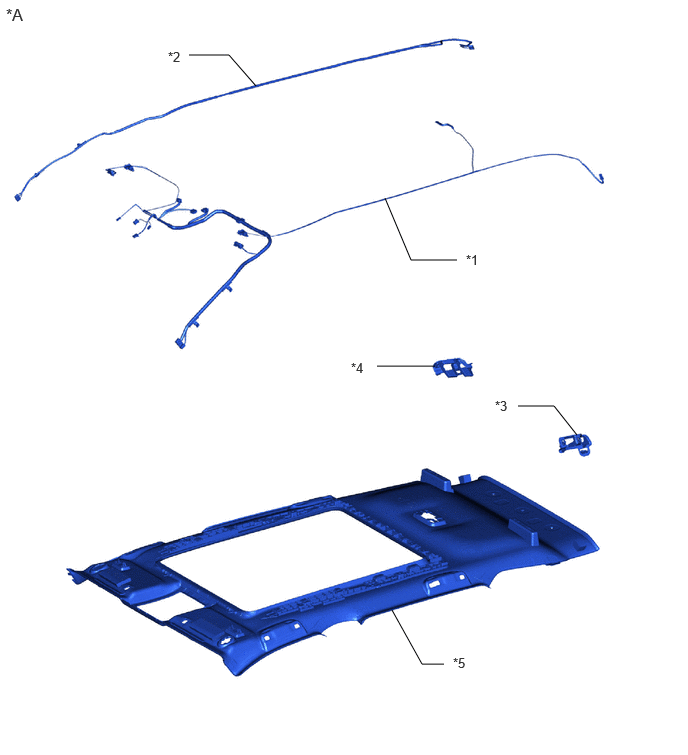

| *A | for Normal Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR NO. 2 SIDE RAIL SPACER LH | *4 | REAR NO. 2 SIDE RAIL SPACER RH |
| *5 | ROOF HEADLINING | - | - |

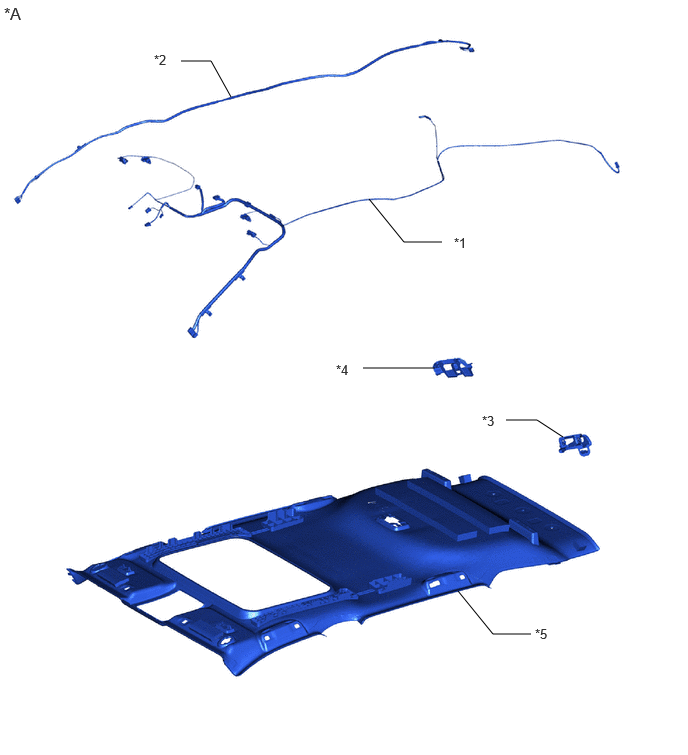

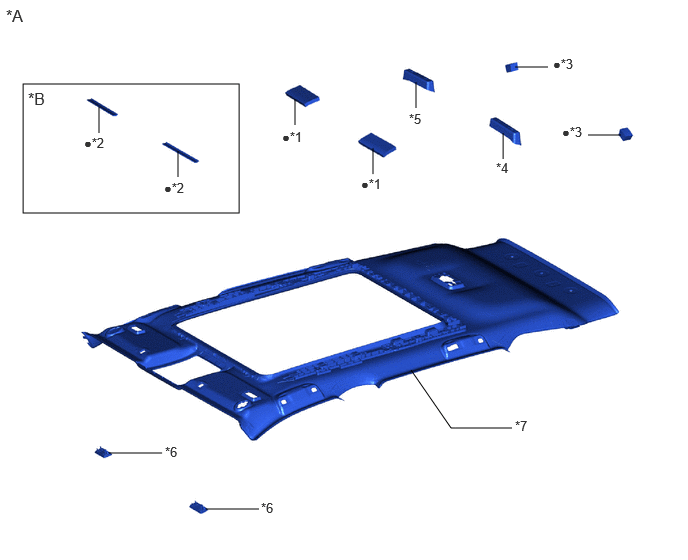

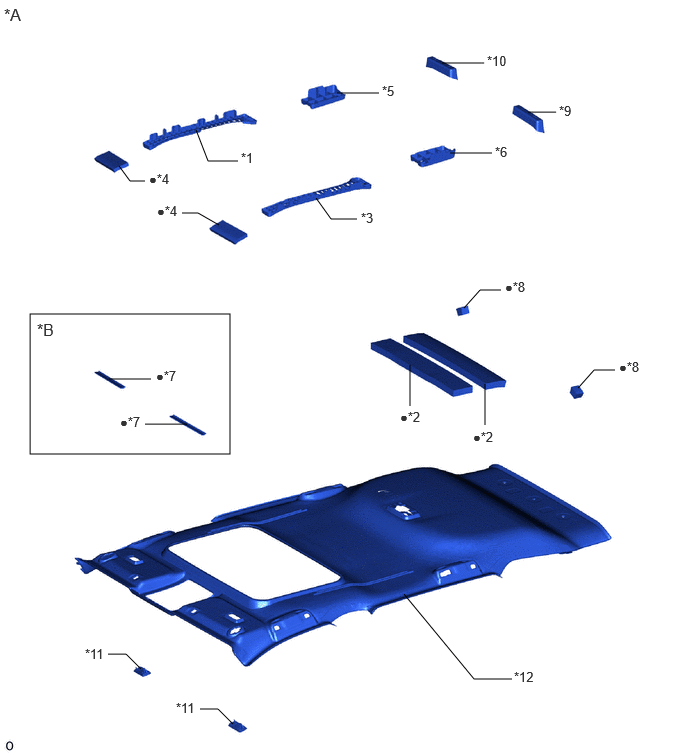

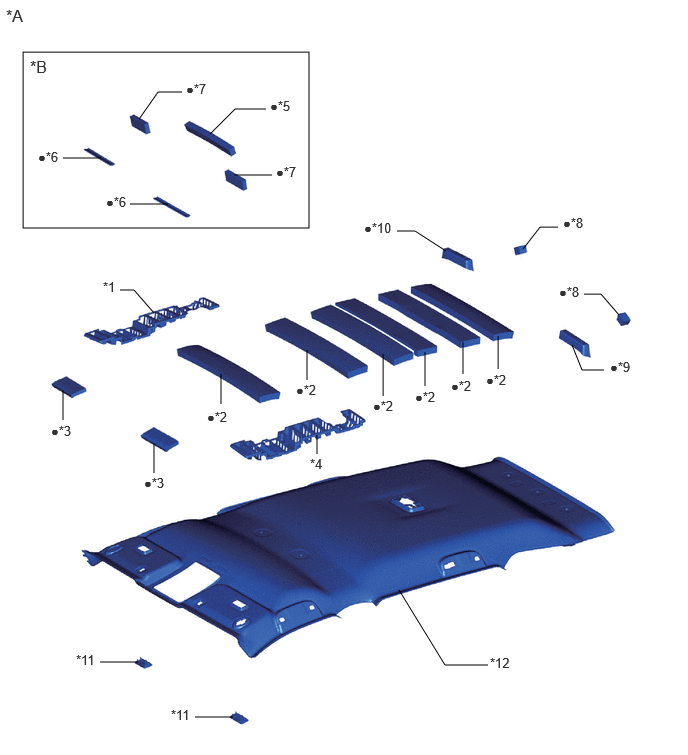

| *A | for Moon Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR NO. 2 SIDE RAIL SPACER LH | *4 | REAR NO. 2 SIDE RAIL SPACER RH |
| *5 | ROOF HEADLINING | - | - |
| *A | for Panoramic Moon Roof | - | - |
| *1 | NO. 1 ROOF WIRE | *2 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *3 | REAR NO. 2 SIDE RAIL SPACER LH | *4 | REAR NO. 2 SIDE RAIL SPACER RH |
| *5 | ROOF HEADLINING | - | - |
| *A | for Normal Roof | *B | for Cold Area |
| *1 | NO. 1 ROOF HEADLINING SUPPORT | *2 | NO. 1 ROOF SILENCER PAD |
| *3 | NO. 2 ROOF HEADLINING PAD | *4 | NO. 2 ROOF HEADLINING SUPPORT |
| *5 | NO. 2 ROOF SILENCER PAD | *6 | ROOF HEADLINING FRONT SIDE PAD |
| *7 | ROOF HEADLINING PAD | *8 | ROOF HEADLINING PAD END |
| *9 | ROOF HEADLINING PAD LH | *10 | ROOF HEADLINING PAD RH |
| *11 | VANITY LIGHT ASSEMBLY | *12 | ROOF HEADLINING |
| • | Non-reusable part | - | - |
| *A | for Moon Roof | *B | for Cold Area |
| *1 | NO. 1 ROOF HEADLINING SUPPORT | *2 | NO. 1 ROOF SILENCER PAD |
| *3 | NO. 2 ROOF HEADLINING SUPPORT | *4 | NO. 2 ROOF SILENCER PAD |
| *5 | NO. 3 ROOF HEADLINING SUPPORT | *6 | NO. 4 ROOF HEADLINING SUPPORT |
| *7 | ROOF HEADLINING FRONT SIDE PAD | *8 | ROOF HEADLINING PAD END |
| *9 | ROOF HEADLINING PAD LH | *10 | ROOF HEADLINING PAD RH |
| *11 | VANITY LIGHT ASSEMBLY | *12 | ROOF HEADLINING |
| • | Non-reusable part | - | - |
| *A | for Panoramic Moon Roof | *B | for Cold Area |
| *1 | NO. 2 ROOF SILENCER PAD | *2 | ROOF HEADLINING FRONT SIDE PAD |
| *3 | ROOF HEADLINING PAD END | *4 | ROOF HEADLINING PAD LH |
| *5 | ROOF HEADLINING PAD RH | *6 | VANITY LIGHT ASSEMBLY |
| *7 | ROOF HEADLINING | - | - |
| • | Non-reusable part | - | - |

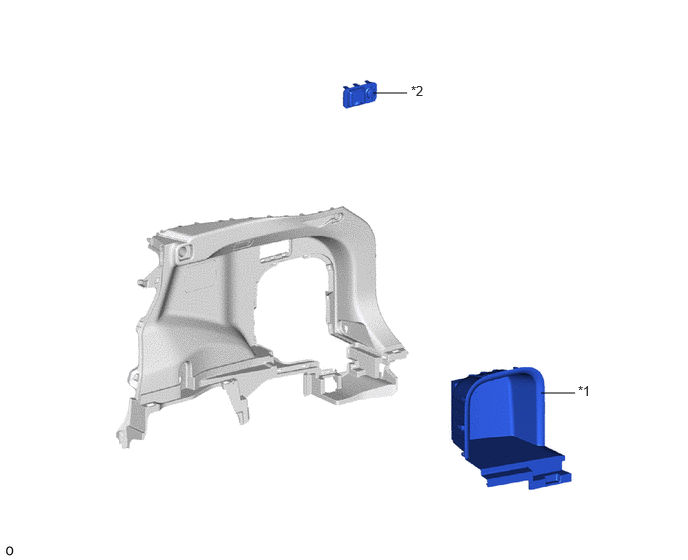

| *1 | BATTERY HOLE COVER | *2 | DECK SIDE TRIM COVER RH |
