Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [06/2020 - 10/2022]: Procedure

1. Check the output waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

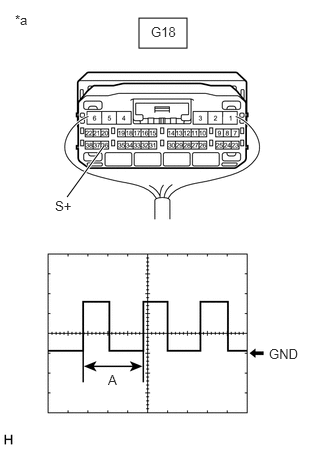

   *a	Component with harness connected (Combination Meter Assembly)

   1. Remove the combination meter assembly with the connector(s) still connected.

      Refer to REMOVAL [06/2020 - 10/2022]

   2. Connect an oscilloscope to terminal G18-36 (+S) and body ground.
   3. Turn the ignition switch to ON.
   4. Turn a wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Item	Condition
      Measurement terminal	G18-36 (+S) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO METER / GAUGE SYSTEM. Refer to  Speed Signal Circuit [06/2020 - 10/2022]

Result:

OK

See step  2

1. Check the input waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

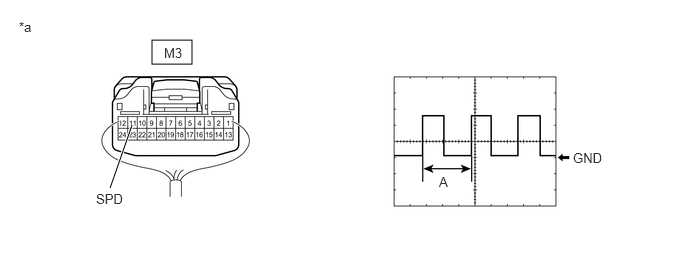

   *a

   Component with harness connected (Stereo Component Amplifier Assembly)

   -

   -

   1. Remove the stereo component amplifier assembly with the connector(s) still connected.

      Refer to REMOVAL [06/2020 - 10/2022]

   2. Connect an oscilloscope to terminal M3-11 (SPD) and body ground.
   3. Turn the ignition switch to ON.
   4. Turn a wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Item	Condition
      Measurement terminal	M3-11 (SPD) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [06/2020 - 10/2022]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
