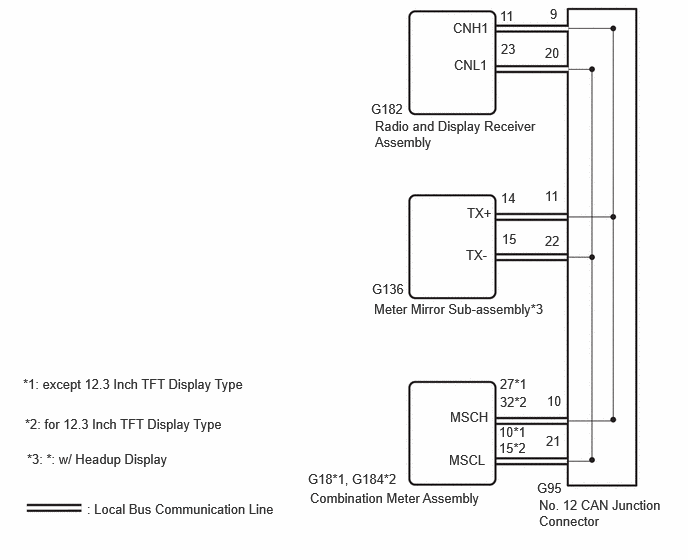

DTC U11D0-87: Lost Local Communication with MET Missing Message; DTC U11D1-87: Lost Local Communication with HUD Missing Message [10/2022 - ]: Wiring Diagram

GTY1120870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
