Installation [06/2020 - 10/2022]: Procedure

INSTALL METER MIRROR SUB-ASSEMBLY

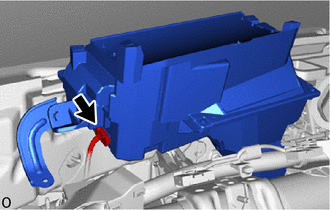

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the meter mirror sub-assembly with the 2 nuts.

Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
Refer to INSTALLATION [06/2020 - 10/2022]
INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
Refer to WORK PROCEDURE [06/2020 - 10/2022]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021] , or refer to AUTOMATIC LEARNING CHART [12/2021 - ]
CHECK SRS WARNING LIGHT
Refer to OPERATION CHECK [06/2020 - ]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [06/2020 - ]
