Components [06/2020 - ]

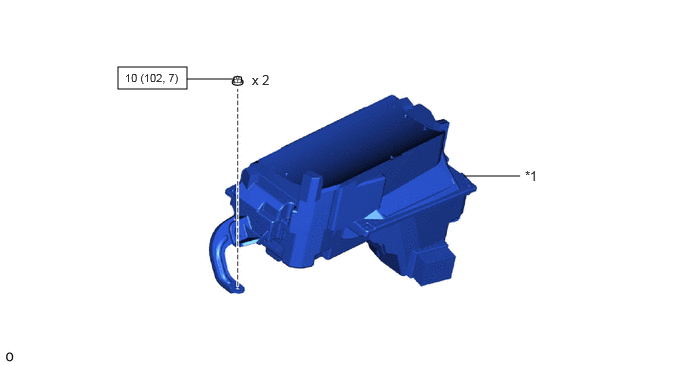

Fig 1: Headup Display Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	METER MIRROR SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

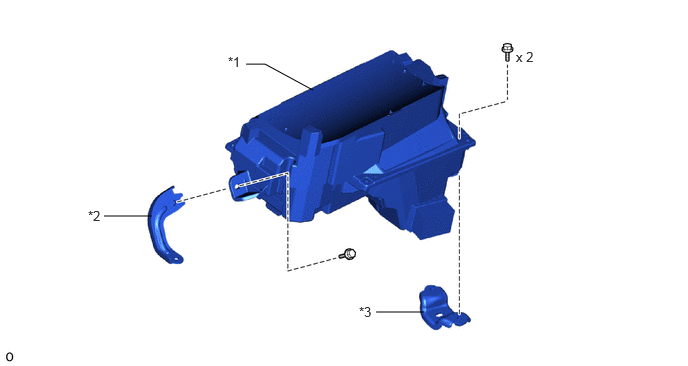

Fig 2: Headup Display Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COMBINATION METER MIRROR PLATE	*2	NO. 2 METER BRACKET SUB-ASSEMBLY
*3	NO. 3 METER BRACKET SUB-ASSEMBLY	-	-

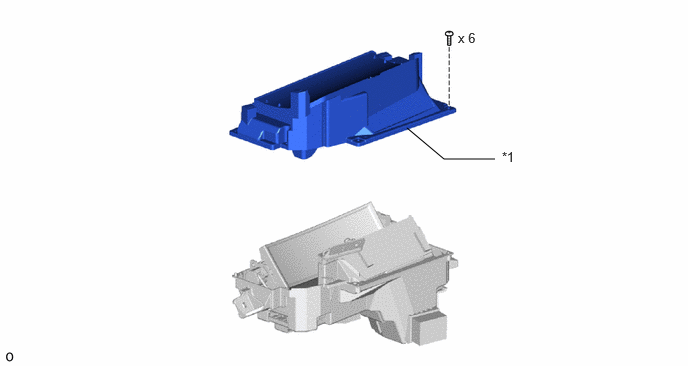

Fig 3: Headup Display Replacement Components (3 Of 3)

COMBINATION METER MIRROR PLATE
