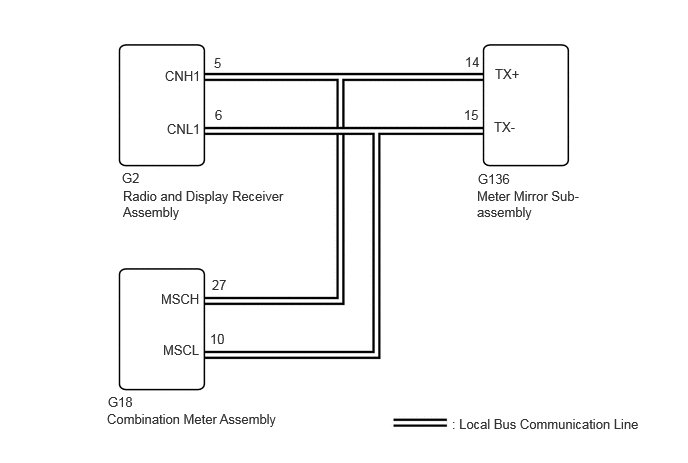

DTC B1321-87: Lost Communication with EMV Missing Message [06/2020 - 10/2022]: Wiring Diagram

GTY974899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
