Removal [06/2020 - 12/2021]: Procedure

  1. REMOVE ENGINE UNDER COVER HEAT INSULATOR

    Refer to PROCEDURE - Step 14

  2. INSTALL ENGINE UNDER COVER BRACKET SUB-ASSEMBLY

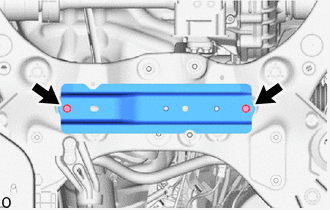

    1. Remove the 2 bolts and front engine under cover bracket sub-assembly.
      GTY976497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [06/2020 - 12/2021]

  4. REMOVE FUEL DELIVERY GUARD

    Refer to PROCEDURE - Step 60

  5. INSTALL ENGINE HANGERS

    Refer to PROCEDURE - Step 61

  6. REMOVE STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  7. DISCONNECT WIRE HARNESS

    Refer to PROCEDURE - Step 10

  8. REMOVE FRONT ENGINE SUPPORT MEMBER SUB-ASSEMBLY

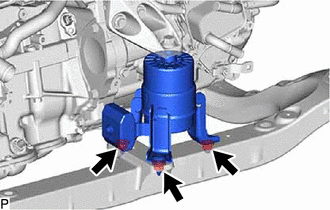

    1. Remove the 3 nuts and separate the front engine mounting insulator from the front engine support member sub-assembly.
      GTY934288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and separate the rear engine mounting insulator from the front engine support member sub-assembly.
      GTY934268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT STABILIZER BAR WITH BRACKET

    Refer to PROCEDURE - Step 14

  10. REMOVE RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to PROCEDURE - Step 15

  11. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

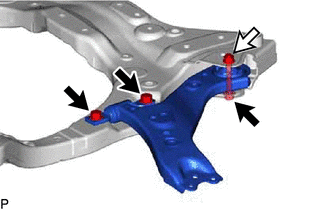

    1. Remove the 3 bolts, nut and front lower No. 1 suspension arm sub-assembly LH from the front engine support member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY930912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front lower arm bushing stopper from the front lower No. 1 suspension arm sub-assembly.
  12. REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  13. REMOVE NO. 2 EXHAUST PIPE SUPPORT BRACKET

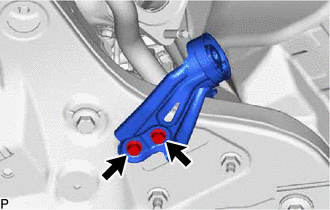

    1. Remove the 2 bolts and No. 2 exhaust pipe support bracket from the front engine support member sub-assembly.
      GTY859639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
