Removal [06/2020 - 12/2021]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [06/2020 - 10/2022]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [06/2020 - 10/2022]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [06/2020 - 12/2021]

    WARNING:
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  3. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 23

  4. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 25

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  6. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  7. REMOVE FUSE BOX OPENING COVER

    Refer to PROCEDURE - Step 19

  8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

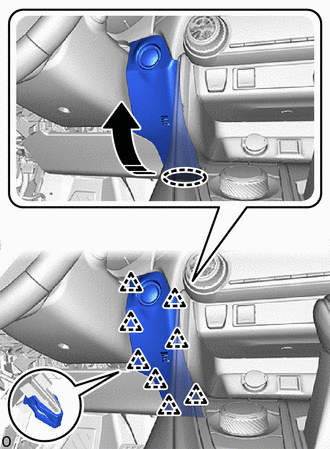

    1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the clip and remove the lower instrument panel finish panel assembly.
      GTY1011558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disconnect the connector.
  9. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    WARNING:
    GTY819831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side
    • When storing the lower No. 1 instrument panel airbag assembly, keep the airbag deployment side facing upward.
    • If the airbag deploys for any reason, it may cause a serious accident.
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:
      • Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.
    3. Disconnect the airbag connector.
      NOTE:

      When disconnecting any airbag connector, take care not to damage the airbag wire harness.

      HINT:

      Refer to How to Connect or Disconnect Airbag Connector: Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [06/2020 - ]

    4. Remove the 2 bolts.
      GTY939449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. GTY854092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Detach the claw and hook to remove the lower No. 1 instrument panel airbag assembly.
