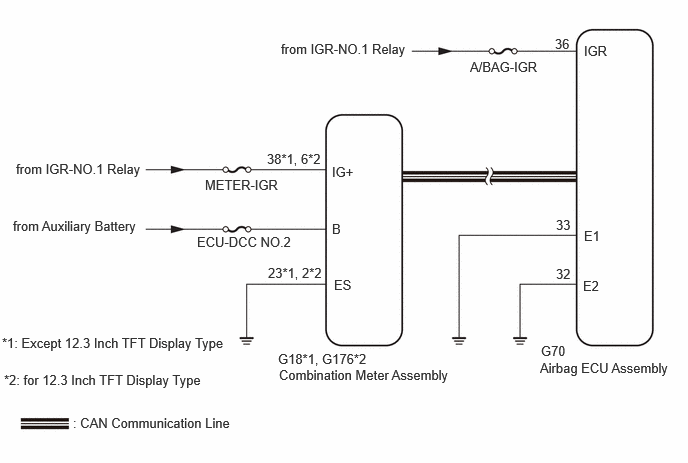

SRS Warning Light does not Come ON [10/2022 - ]: Wiring Diagram

GTY1110528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
