DTC B1875-13: Passenger Seat Cushion Airbag Squib Circuit Open [06/2020 - 10/2022]: Procedure

1. Turn the ignition switch to ON, and wait for at least 60 seconds.
2. Check for DTCs.

   Body Electrical > SRS Airbag > Trouble Codes

   Result

   Proceed to
   DTC B1875-13 is output
   Past DTC B1875-13 is output

Result:

Past DTC B1875-13 is output

USE SIMULATION METHOD TO CHECK

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2020 - ]

HINT:

• To perform the simulation method, enter check mode (signal check) with the GTS.

  Refer to DTC CHECK / CLEAR [06/2020 - ]

• Perform the simulation method while checking the Data List.

  Refer to DATA LIST / ACTIVE TEST [06/2020 - ]

Result:

DTC B1875-13 is output

See step  2

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
3. Check that the connectors are properly connected to the front seat cushion airbag assembly RH and airbag ECU assembly.

   OK

   The connectors are properly connected.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  3

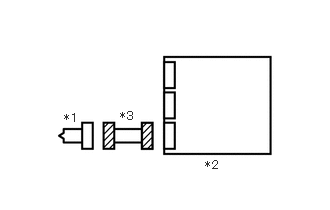

1. Disconnect the airbag ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Cushion Airbag Assembly RH
   *2	Airbag ECU Assembly
   *3	Wire Harness

2. Disconnect the front seat cushion airbag assembly RH.
3. Check that the terminals of the connectors are not deformed or damaged.

   OK

   The terminals of the connectors are not deformed or damaged.

4. Check that the connectors are not loose, deformed or damaged.

   OK

   The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

5. Check that the short springs of the activation prevention mechanisms of the wire harness connector are not deformed or damaged.

   OK

   The short springs are not deformed or damaged.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Connect the M15 airbag ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Cushion Airbag Assembly RH
   *2	Airbag ECU Assembly
   *3	Wire Harness
   *4	SST
   *a	Front view of wire harness connector (to Front Seat Cushion Airbag Assembly RH)

2. Connect the white wire side of SST (resistance 2.1 Ω) to connector C (orange connector).
   WARNING:

   Never connect a tester to the front seat cushion airbag assembly RH for measurement, as this may lead to a serious injury due to airbag deployment.

   NOTE:

   • Do not forcibly insert SST into the terminals of the connector when connecting it.
   • Insert SST straight into the terminals of the connector.
   • SST: 09843-18061
3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.
5. Clear the DTCs stored in memory.

   Body Electrical > SRS Airbag > Clear DTCs

6. Turn the ignition switch off.
7. Turn the ignition switch to ON, and wait for at least 60 seconds.
8. Check for DTCs.

   Body Electrical > SRS Airbag > Trouble Codes

   Result

   Proceed to
   B1875-13 is not output
   B1875-13 is output

   HINT:

   Codes other than DTC B1875-13 may be output at this time, but they are not related to this check.

9. Turn the ignition switch off.
10. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
11. Disconnect SST from connector C.

Result:

B1875-13 is not output

REPLACE FRONT SEAT CUSHION AIRBAG ASSEMBLY RH. Refer to  REMOVAL [06/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]

Result:

B1875-13 is output

See step  5

1. Disconnect the M15 airbag ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Cushion Airbag Assembly RH
   *2	Airbag ECU Assembly
   *3	Wire Harness
   *a	Front view of wire harness connector (to Front Seat Cushion Airbag Assembly RH)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   M19-2 (FCP+) - M19-1 (FCP-)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Connect the airbag ECU assembly connector.
2. Connect the front seat cushion airbag assembly RH connector.
3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.
5. Clear the DTCs stored in memory.

   Body Electrical > SRS Airbag > Clear DTCs

6. Turn the ignition switch off.
7. Turn the ignition switch to ON, and wait for at least 60 seconds.
8. Check for DTCs.

   Body Electrical > SRS Airbag > Trouble Codes

   Result

   Proceed to
   B1875-13 is not output
   B1875-13 is output

   HINT:

   Codes other than DTC B1875-13 may be output at this time, but they are not related to this check.

9. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
10. Turn the ignition switch off.

Result:

B1875-13 is not output

USE SIMULATION METHOD TO CHECK

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2020 - ]

HINT:

• To perform the simulation method, enter check mode (signal check) with the GTS.

  Refer to CHECK MODE PROCEDURE [06/2020 - ]

• Perform the simulation method while checking the Data List.

  Refer to DATA LIST / ACTIVE TEST [06/2020 - ]

Result:

B1875-13 is output

REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [06/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]
