Removal [06/2020 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY

    Refer to REMOVAL [06/2020 - ]

  2. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

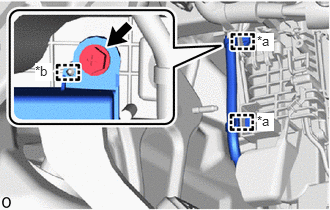

    1. Detach the clamp.
      GTY933062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the screw.

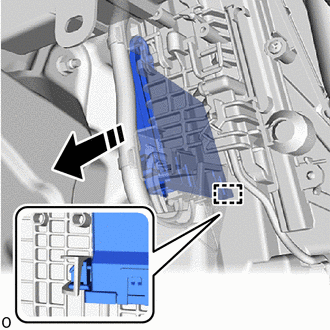

    3. Detach the guide.
    4. Detach the guide.
      GTY986004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Pull out the air conditioning amplifier assembly as shown in the illustration.
    6. Disconnect the 5 connectors and remove the air conditioning amplifier assembly.
      GTY984862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
