Installation [06/2020 - ]: Procedure

  1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Connect the 5 connectors.
      GTY984862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

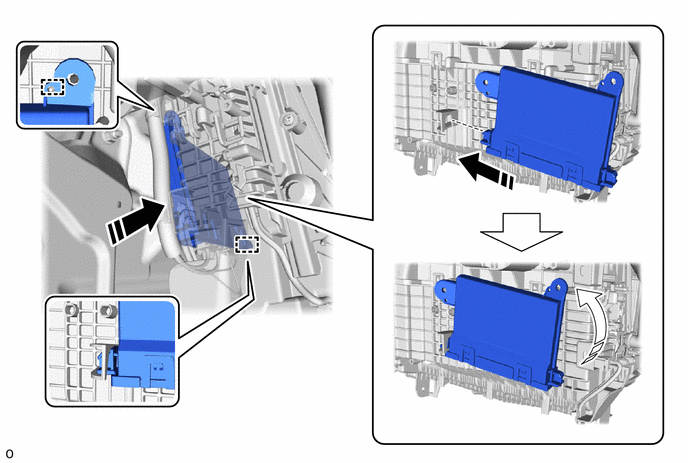

    2. Insert the air conditioning amplifier assembly into the guide as shown in the illustration.
      GTY985924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert in this Direction Rotate in this Direction
    3. Rotate the air conditioning amplifier assembly to engage it to the guide as shown in the illustration.

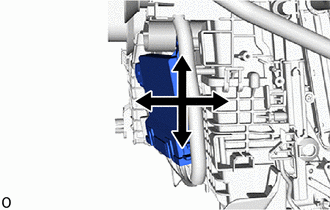

    4. Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged.
      GTY985957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

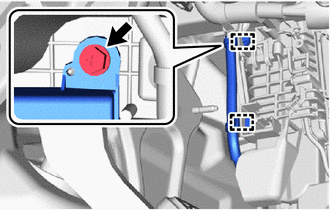

    5. Install the air conditioning amplifier assembly with the screw.
      GTY929971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Attach the clamp.
  2. INSTALL ACCELERATOR PEDAL ASSEMBLY

    Refer to INSTALLATION [06/2020 - ]
