Removal [06/2020 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [06/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - ]

  2. REMOVE IGNITION COIL ASSEMBLY

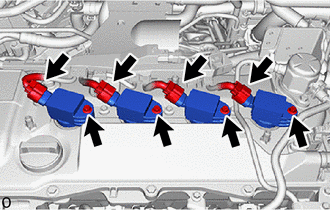

    1. GTY996982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the 4 ignition coil assembly connectors.

    2. Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
      NOTE:

      If a ignition coil assembly has been struck or dropped, replace it.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
