Installation [06/2020 - 12/2021]: Procedure

  1. INSTALL MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
    1. Hold the main body ECU (multiplex network body ECU) with your dominant hand.
      GTY912702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not touch the connector.
      • Make sure foreign matter does not enter the terminals.
      GTY863191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector

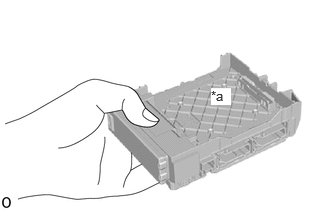

    2. Hold the power distribution box assembly with your other hand.
      GTY987149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fitting Surface
      NOTE:

      Make sure there is no foreign matter in the fitting surface.

    3. Set the guide of the main body ECU (multiplex network body ECU) against the housing sidewall.

      HINT:

      Make sure the angle between the power distribution box assembly and the main body ECU (multiplex network body ECU) is 20° or more.

      GTY985886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 20° or more
      Install in this Direction
      Housing Sidewall
    4. Slide the guide of the main body ECU (multiplex network body ECU) along the housing sidewall in the direction indicated by the arrow.
      GTY987035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Housing Sidewall
    5. Slide it until it contacts side A.
      GTY986817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Side A
    6. Contact side A.
      NOTE:

      Do not contact side A with the main body ECU (multiplex network body ECU) too hard.

      GTY986091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

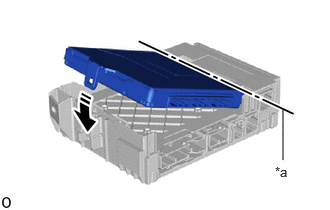

    7. While pressing the main body ECU (multiplex network body ECU) against side A (center of rotation) of the power distribution box assembly, rotate it until it enters the lock of the power distribution box assembly.

      HINT:

      The center of rotation is the one that contacts surface A.

      GTY986929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Center of Rotation (Contacts Surface A)
      Rotate in this Direction
      GTY986063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Center of Rotation (Contacts Surface A)
      Rotate in this Direction
    8. Rotate it until it enters the lock of the power distribution box assembly.
      GTY986844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Before Locking *b Main Body ECU (Multiplex Network Body ECU) Lock
      *c Power Distribution Box Assembly Lock - -

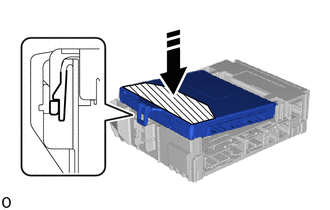

    9. Press the pressing area of the main body ECU (multiplex network body ECU).
      GTY986580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Pressing Area
      NOTE:
      • Do not insert with a force of 98 N (10 kgf, 22.0 lbf) or higher to prevent it from being damaged.
      • Do not hit on or put your weight on the main body ECU (multiplex network body ECU) when engaging the main body ECU (multiplex network body ECU).

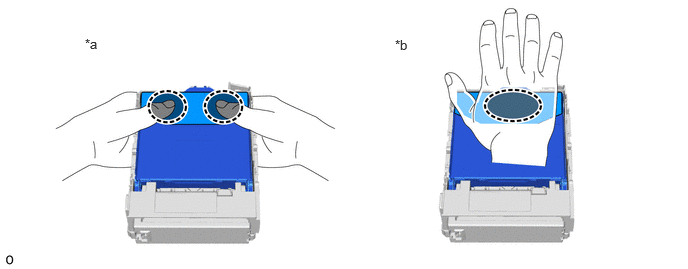

      1. Press it in one of the following ways.
        GTY987203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Press the 2 sides of the main body ECU (multiplex network body ECU) with both hands. *b Press the center of the main body ECU (multiplex network body ECU) with one hand.
        Place fingers or the palm of your hand here - -
      2. Check the engagement of the main body ECU (multiplex network body ECU) and the power distribution box assembly by the locking sound.
        NOTE:

        As the connector may not be connected securely, visually check the lock part engagement if a locking sound cannot be heard.

    10. Check that the back side of the main body ECU (multiplex network body ECU) and the rib surrounding the power distribution box assembly are the same height.
      GTY986742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Back Side of Main Body ECU (Multiplex Network Body ECU)
      *b Rib Surrounding Power Distribution Box Assembly
      GTY987123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a After Locking (Height Matches) *b Back Side of Main Body ECU (Multiplex Network Body ECU)
      *c Rib Surrounding Power Distribution Box Assembly - -
      Confirm Visually - -
    11. Attach the claw to install the junction block bracket to the power distribution box assembly.
      GTY985931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER DISTRIBUTION BOX ASSEMBLY WITH MAIN BODY ECU
    1. Attach the wire harness clamp.
      GTY987114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lever Connector - -
      Rotate in this Direction - -
    2. Connect the connector.
    3. Attach the claw to connect the 2 lever connectors.
      NOTE:

      Be sure to connect the connector securely.

    4. Attach the claw to install the power distribution box assembly with main body ECU to the connector holder.
      GTY986854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Attach the claw to install the power distribution box assembly with main body ECU with the 2 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      GTY986678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the 5 connectors.
      GTY986677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

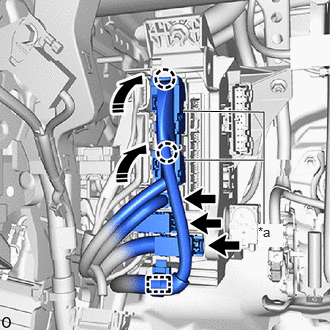

    7. Connect the 3 connectors.
      GTY986389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lever Connector
      Rotate in this Direction
    8. Attach the wire harness clamp.
    9. Attach the claw to connect the 2 lever connectors.
      NOTE:

      Be sure to connect the connector securely.

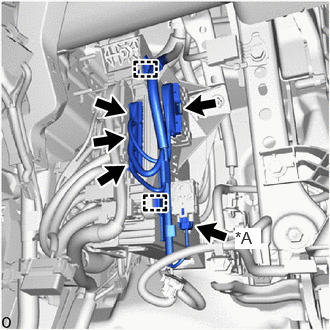

    10. w/ Outer Rear View Mirror Foot light:
      GTY986745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ TOYOTA Parking Assist-sensor System
      1. w/ TOYOTA Parking Assist-sensor System:

        Connect the 5 connectors.

      2. w/o TOYOTA Parking Assist-sensor System:

        Connect the 4 connectors.

      3. Attach the wire harness clamp.
    11. w/o Outer Rear View Mirror Foot light:
      1. w/ TOYOTA Parking Assist-sensor System:
        GTY986060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ TOYOTA Parking Assist-sensor System

        Connect the 4 connectors.

      2. w/o TOYOTA Parking Assist-sensor System:

        Connect the 3 connectors.

      3. Attach the wire harness clamp.
  3. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

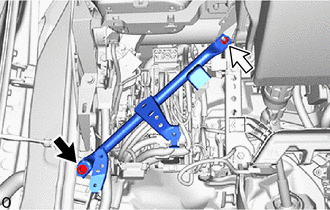

    1. Install the No. 3 instrument panel to cowl brace sub-assembly with the nut and bolt.
      GTY987185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Nut

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      Bolt

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    2. Attach the guide and wire harness clamp.
      GTY986519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
      *b Guide
  4. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [06/2020 - 10/2022]

  5. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

    Refer to WORK PROCEDURE [06/2020 - 10/2022]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [06/2020 - 12/2021]
