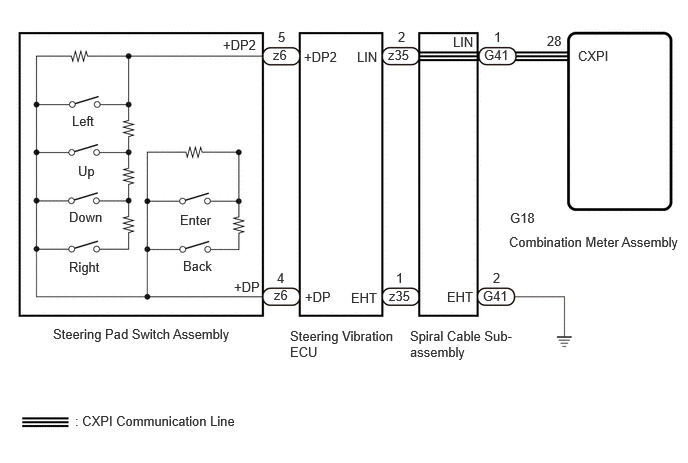

Steering Pad Switch Circuit [12/2021 - 10/2022]: Wiring Diagram

GTY1106422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
