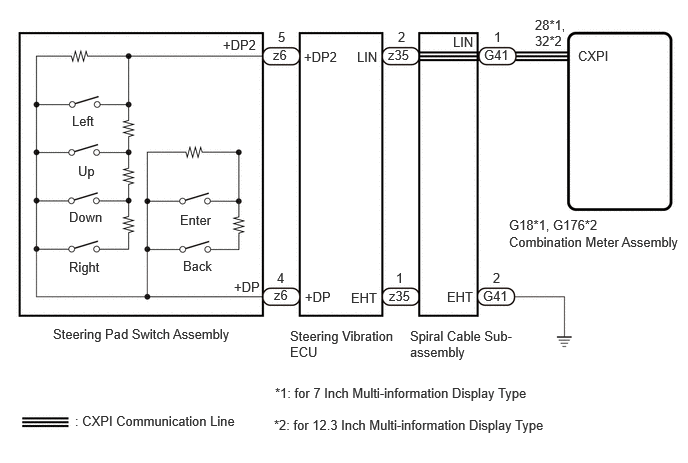

Steering Pad Switch Circuit [10/2022 - ]: Wiring Diagram

GTY1106420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
