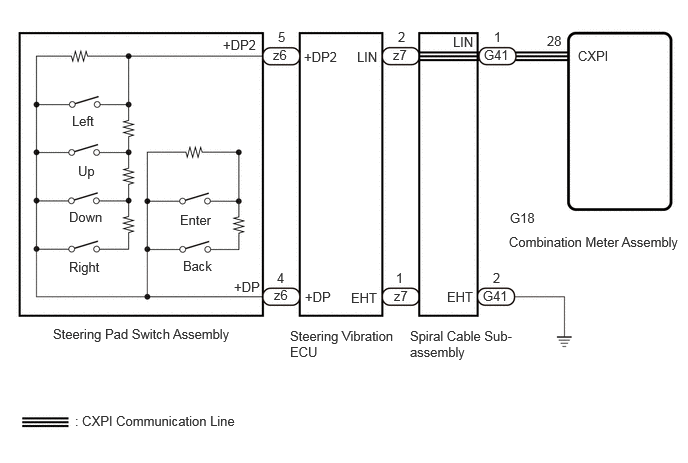

Steering Pad Switch Circuit [06/2020 - 12/2021]: Wiring Diagram

GTY1011108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
