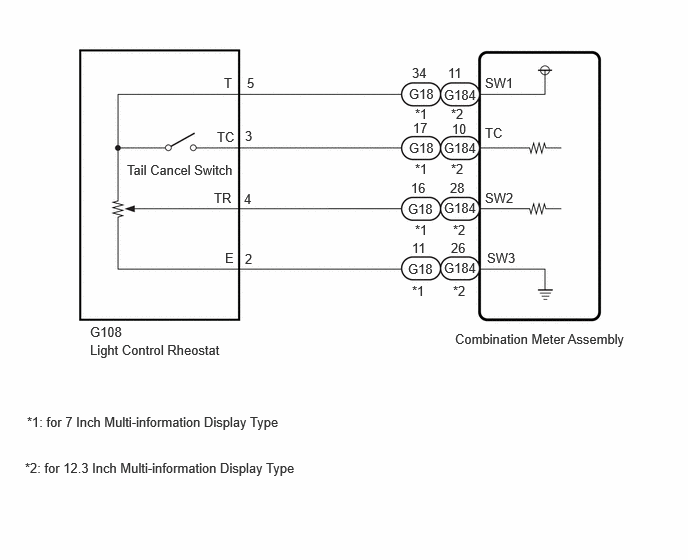

Operating Light Control Rheostat does not Change Light Brightness [10/2022 - ]: Wiring Diagram

GTY1110340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
