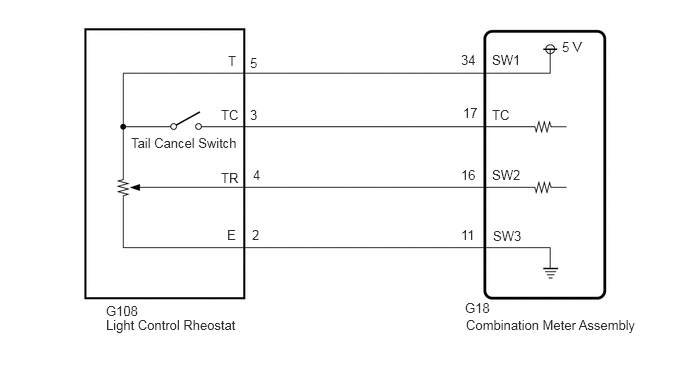

Operating Light Control Rheostat does not Change Light Brightness [06/2020 - 10/2022]: Wiring Diagram

GTY846210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
