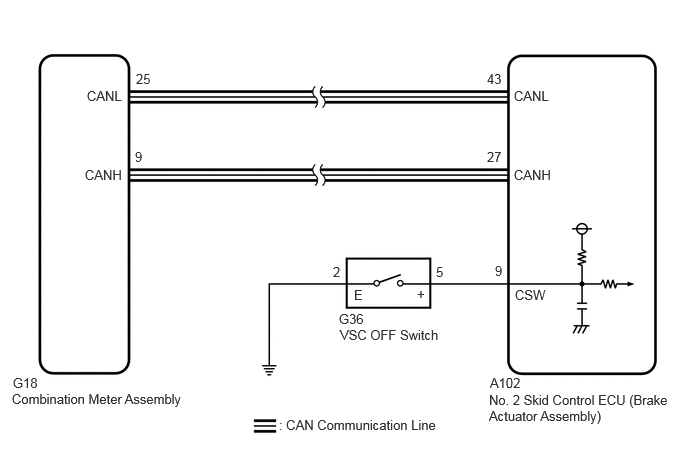

VSC OFF Switch Circuit [06/2020 - 10/2022]: Wiring Diagram

GTY974753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
