Typical Malfunction Thresholds

Following condition is met	Higher than 3 times

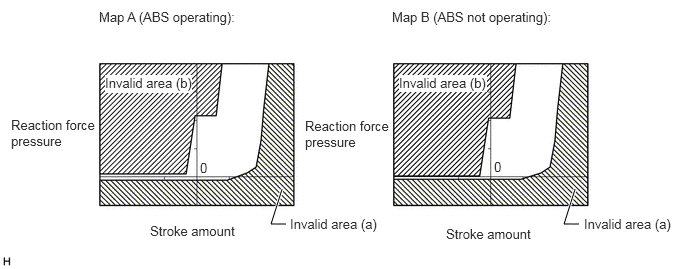

Ratio of the output value of the brake pedal stroke sensor assembly and reaction force pressure sensor	Within the invalid area (a) or invalid area (b) of the following Map A or Map B

Fig 1: ABS Malfunction Threshold
