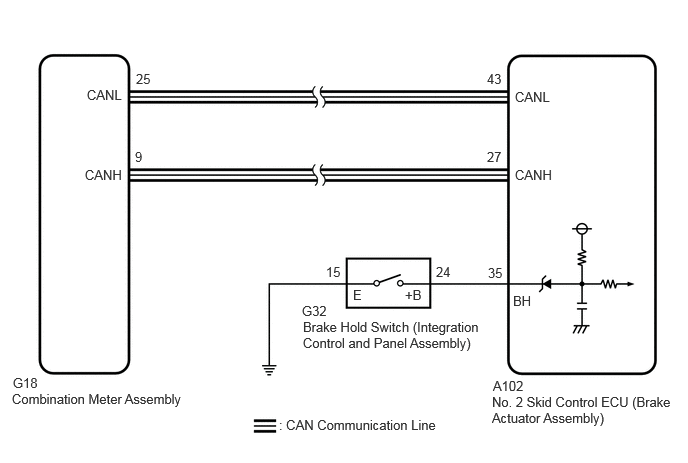

Brake Hold Standby Indicator Light Circuit [06/2020 - 10/2022]: Wiring Diagram

GTY974568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
