Reassembly [06/2020 - ]: Procedure

HINT:

When removing the No. 1 body outside moulding pad, if it is difficult to remove, heat the adhesive of the quarter outside moulding LH and No. 1 body outside moulding pad using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

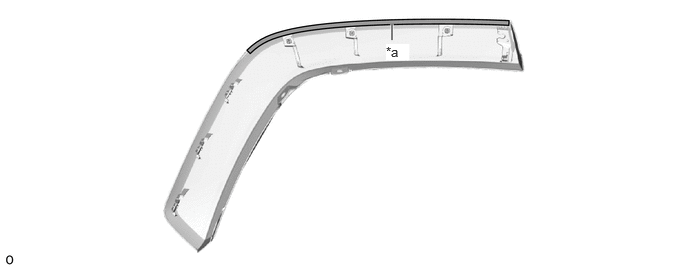

*a	Heated Part
*b	Heat Light

1. When reusing the quarter outside moulding LH:
   1. Using a heat light, heat the quarter outside moulding LH.
   2. Remove any remaining double-sided tape quarter outside moulding LH.
   3. Wipe off any tape adhesive residue with cleaner.
      NOTE:

      • Installing the No. 1 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
      • Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
2. Apply primer to quarter outside moulding LH on the installation area of the No. 1 body outside moulding pad using a brush or felt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Mark-off Line	-	-
   	Primer	-	-

   NOTE:

   • Replace the brush or felt if it is dirty or has become hardened.
   • Keep any painted surface free from primer.
   • If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.
   • Do not touch surfaces to which primer has been applied until the No. 1 body outside moulding pad has been attached.
3. Let the primer dry sufficiently.
   NOTE:

   Do not touch applied surfaces until the primer is dry.

   Recommended drying time

   10 minutes or more (at 23°C (73°F))

4. Using a heat light, heat the quarter outside moulding LH and a new No. 1 body outside moulding pad.
   NOTE:

   Do not heat quarter outside moulding LH and No. 1 body outside moulding pad excessively.

5. Remove the release paper from the No. 1 body outside moulding pad.
   NOTE:

   After removing the peeling paper, do not touch the surface of the tape with your fingers or cotton work gloves.

6. Install the No. 1 body outside moulding pad in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

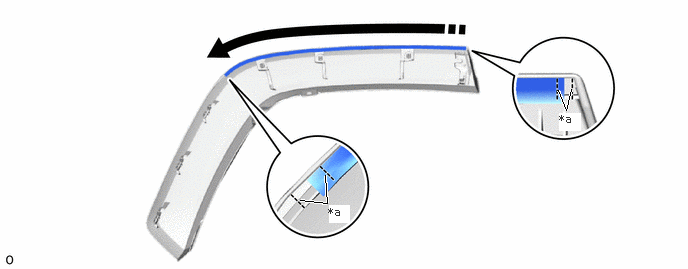

   *a	Mark-off Line	-	-
   	Install in this Direction	-	-

   NOTE:

   The application strength of the No. 1 body outside moulding pad will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

   HINT:

   • Make sure that the end of the No. 1 body outside moulding pad is between the mark-off lines.
   • Apply pressure so that it does not lift up from the quarter outside moulding LH.
