Components [06/2020 - ]

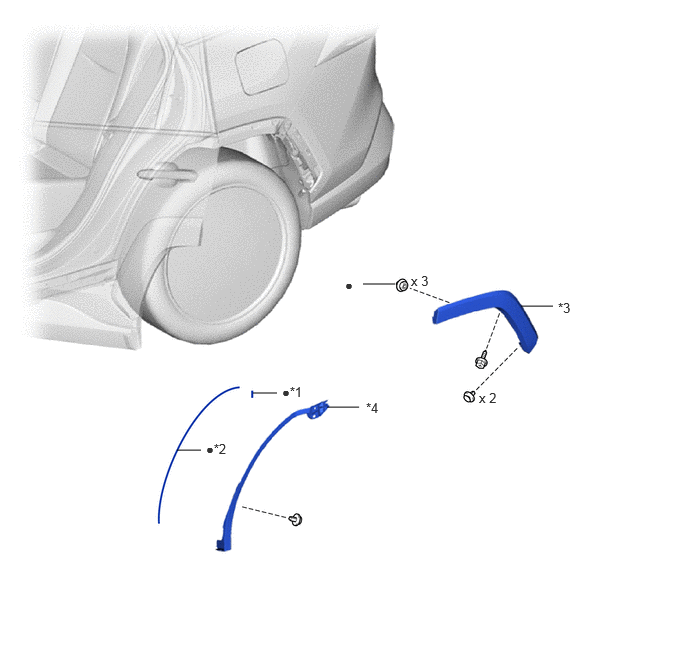

Fig 1: Wheel Opening Moulding (For Rear) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 MOULDING TAPE	*2	NO. 2 MOULDING TAPE
*3	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	*4	QUARTER PANEL WHEEL OPENING MOULDING LH
•	Non-reusable part	-	-

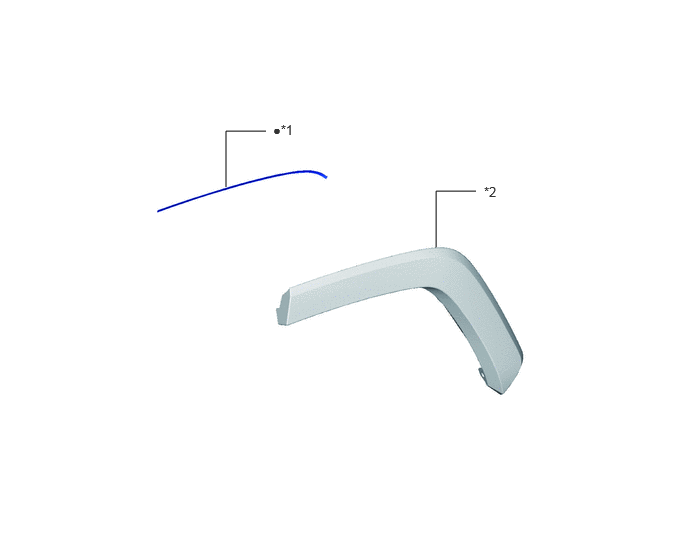

Fig 2: Wheel Opening Moulding (For Rear) Replacement Components (2 Of 2)

*1	NO. 1 BODY OUTSIDE MOULDING PAD	*2	QUARTER OUTSIDE MOULDING LH
•	Non-reusable part	-	-
